3-WAY VALVE(Round)
Using the air control way the fluid (as paint or solvent) control output or the direction
Application
- A fixed volume valve.
- Coating control.
- Automatic change the color organization.
- Automatic clean organization.
- For paint mixing system use.

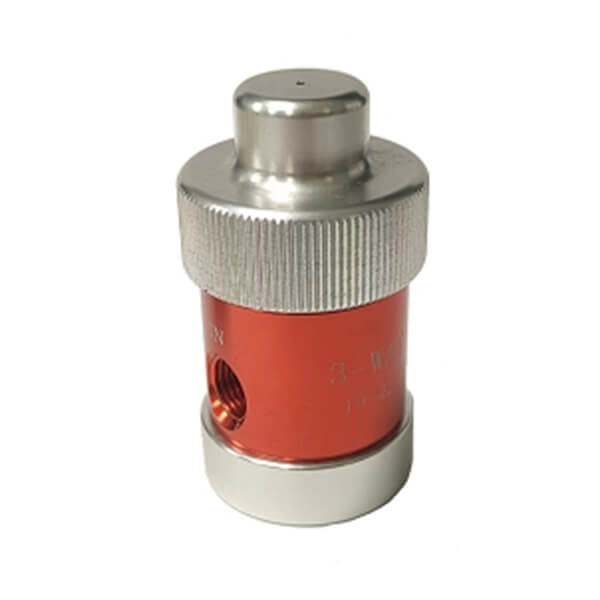

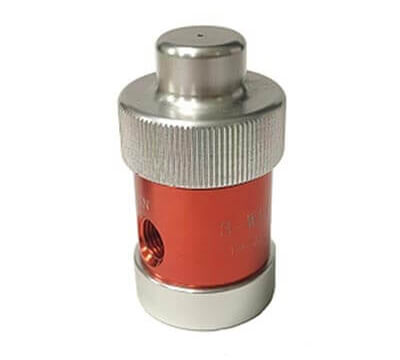

3-WAY
(Suitable for water and oil)

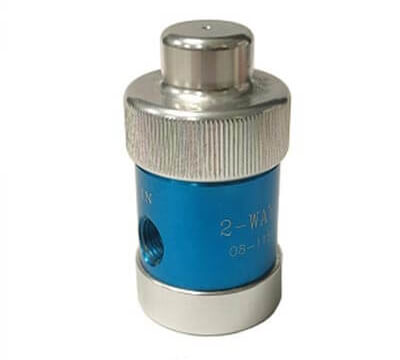

2-WAY
(Suitable for water and oil)

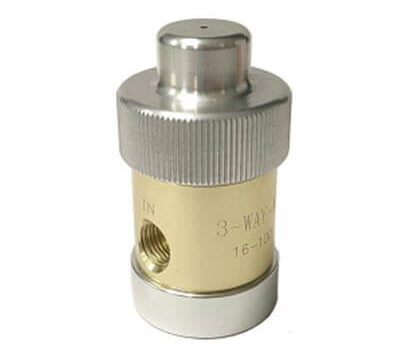

3-WAY-W
(Wear-resistant)
3-WAY VALVE(Round) Specifications
| Paint Inlet Size | 1/4" pt (f ) |
|---|---|
| Paint Outlet Size | 1/4"ps ( m ) |
| Paint Return Size | 1/4"pt ( f ) |
| Inlet Size of Air Pressure Control | 1/8"pt ( f ) |
| Max. Paint Pressure | 6 kg /cm2 |
| Pressure Control Range | 2.5 ~ 4.5 kg /cm2 |
| Max. Flow | 0 ~4 lpm |
| Wetted Parts | SUS304 / Aluminum / Teflon |
| Temperature Range | 5 – 80 °C |
| (mm) Size | Ø 44 x L 80 m /m |
| Net Weight | 230 g |
