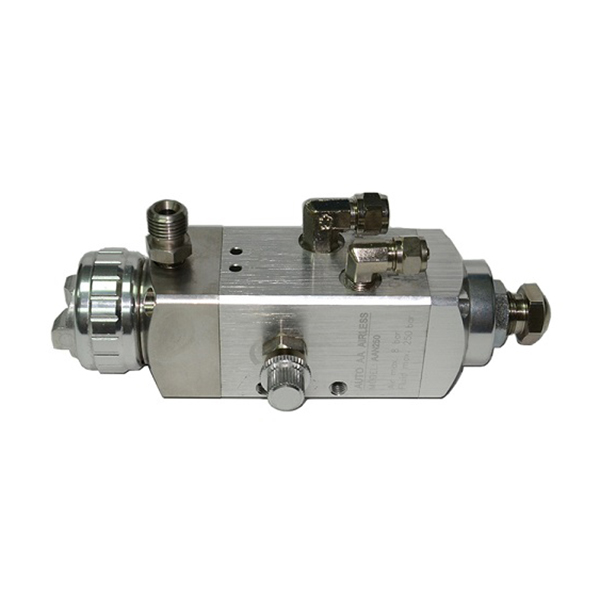

Air mix auto spray gun

Name : Air mix auto spray gun
Model : AAN-250
Inquiry
Air mix auto spray gun
  • Lowest paints rebound can reduce the paint dust in the spray booth.
  • Two ways assistant air orifice not only adjust the pattern width,but also could get thorough atomization effect.
  • With medium-pressure paint pump can get good atomization and save the equipment invest.
  • Use the valve of Wolfam Carbonize, can long time keep the airtight precision.
  • Form the thick painting membrane easily.
  • Not easy to be limited by painting viscosity, medium & high viscocity paints still can use.
  • Spray formed in parallet shape,and very steady.
AAN-250 Specifications:
Spray angle(ﾟ) 10ﾟ~80ﾟ
Nozzle size 0.07~0.19mm
Max. fluid output(mL/min) 1200 ml/min
Paint Inlet size 1/4"ps(m)
Paint return size 1/4"ps(m)
Max. air preesure 7kg/cm²
Max. paint pressure 200kg/cm²
Air. consumption 220~260L/mm
Max. transfer efficiency(%) 60%
Gun length 165 mm
Gun net weight 930g
