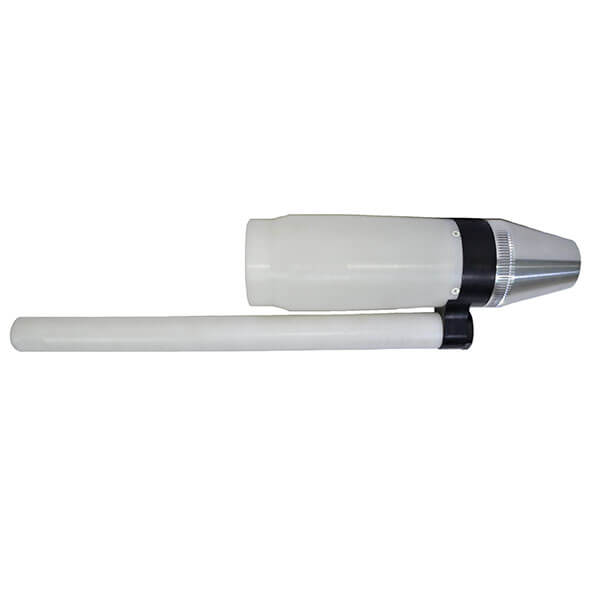

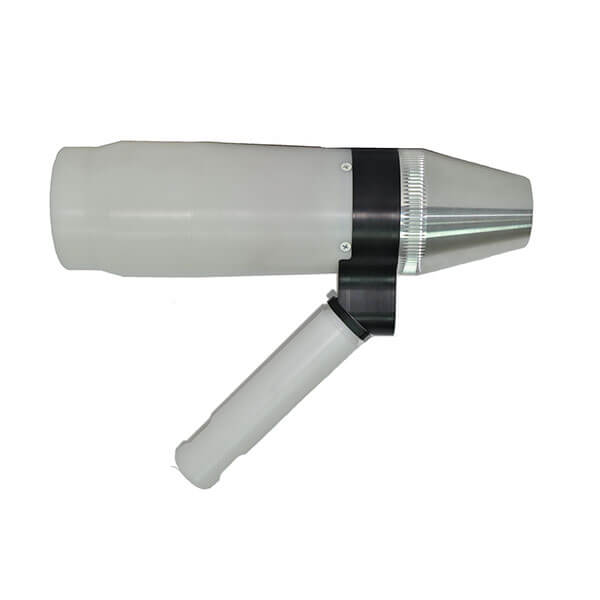

Name : CBL-18 BELL AIR MOTOR
Model : CBL-18
Product Introduction

Dia. Of bell

Ø30mm、Ø50mm

Max. Rotational Speed

50000rpm

Voltage

0-60KV

Shaping Air Consumption

20-500NI/min

Rotary Air Consumption

100-1000NI/min

Paint output

0-300cc/min

Size

Ø100×300mmL

Weight

CBL-18-R=1.78kg(不含3-WAY)
CBL-18-L =2.18kg(不含3-WAY)


CBL-18 Bell
proimages/products/10Disk_Air_Motor/200612-05-s.jpg

CBL18-30-A/AG

proimages/products/10Disk_Air_Motor/200612-06-s.jpg

CBL18-30-AT

proimages/products/10Disk_Air_Motor/200612-07-s.jpg

CBL18-30-P

proimages/products/10Disk_Air_Motor/200612-08-s.jpg

CBL18-50-A/AG

proimages/products/10Disk_Air_Motor/200612-09-s.jpg

CBL18-50-AT

proimages/products/10Disk_Air_Motor/200612-10-s.jpg

CBL18-50-P



Bell of choose:

Bell specifications

Applicable workpiece

Ø30mm

Small workpiece , pipe fittings

Ø50mm

Large parts


Bell model

Applications

CBL18-30/50-A

For general oil paint

CBL18-30/50-AG

For transparent, oily paint [high viscosity]

CBL18-30/50-AT

For water base paint

CBL18-30/50-P

Particle powder paint, water / oil dual use



CBL-18 Shape cover
proimages/products/10Disk_Air_Motor/200612-11-s.jpg

CBL18-30-A/AG

proimages/products/10Disk_Air_Motor/200612-12-s.jpg

CBL18-30-A/AG
