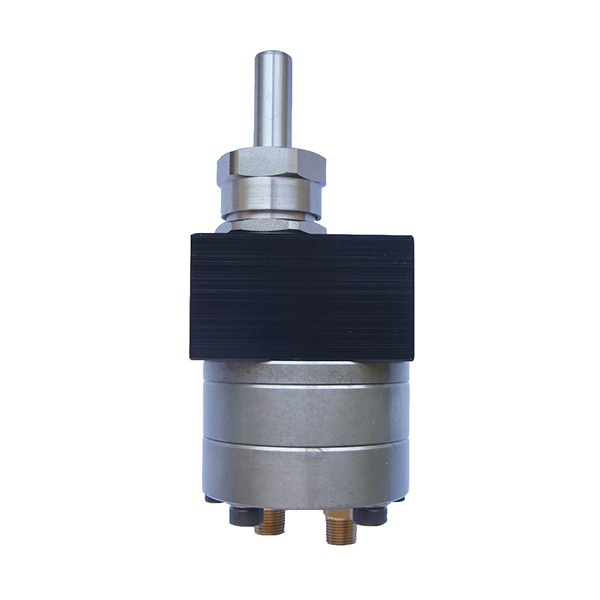

Name : Fluid Convey Gear Pump (clean)
Model : K-PUMP-CW
  • A fixed volume of paint or fluid can be set for the delivery purpose,with the combination use of motor and converter will generates the best outcome.
  • For special paint or fluid, K-pump can be customized accordingly.
Fluid Convey Gear Pump (clean) Specifications
Pump Size 1.5cc、3cc、5cc
Paint Outlet Size 3/8" pt ( f )
Paint Inlet Size 3/8" pt ( f )
Clean Paint Inlet Size 1/8” pt ( f )
Clean Paint Outlet Size 1/8” pt ( f )
Temperature Range 5- 70 °C
Mix. Rotation Speed 250 RPM
Material SLD

K-PUMP-CW Operating Instructions

  • Paint conveying use of pressure as the basis set used cleaning solvent delivery pressure. Paint delivery pressure, with the cleaning solvent delivery pressure must be equal.
    Example:
    Paint delivery pressure 2kg/cm2 = Cleaning solvent delivery pressure 2kg/cm2
    Paints and solvents can we prevent mixing.

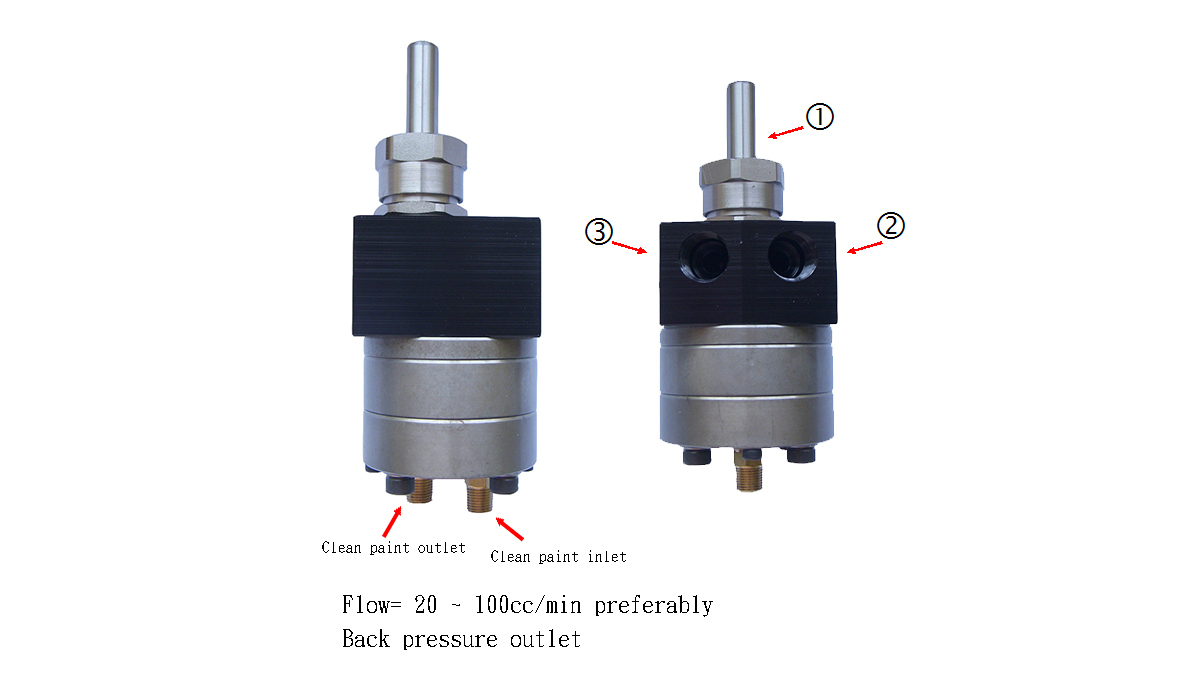

  • When rotated 1 clockwise, 2 Paint outlet, 3 Paint inlet.
    When rotating 1 counterclockwise, 2 Paint inlet, 3 Paint outlet.
proimages/products/08Gear_Pump/08-02K-PUMP-CW/08-02-01K-PUMP-CW.jpg
