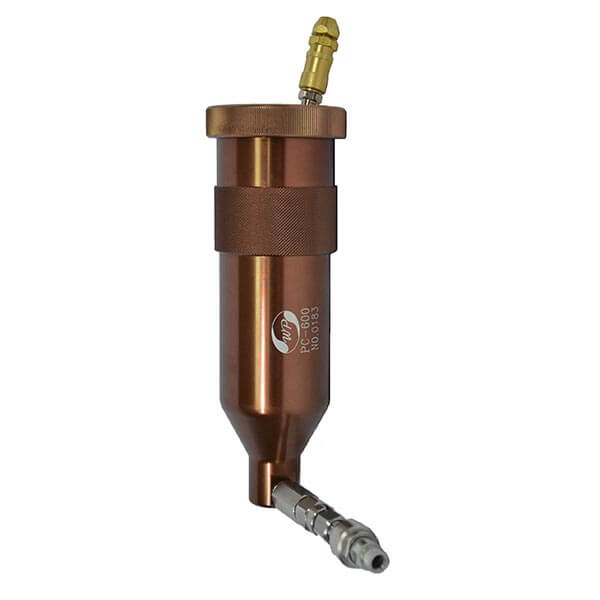

Name : Paint Pressure Cup
Model : PC-600
  • Simple and easy to operation.
  • Easy to cleaning, change the color fast.
  • Saves the massive clean solvent.
  • The paint pressure is stable and adjustment fast convenient.

Application

  • Suitable for few diverse of work-piece.
  • When operation must use many kinds of paint.
  • For the sample and the development part use.

Accessories

  • Paint cup:1set

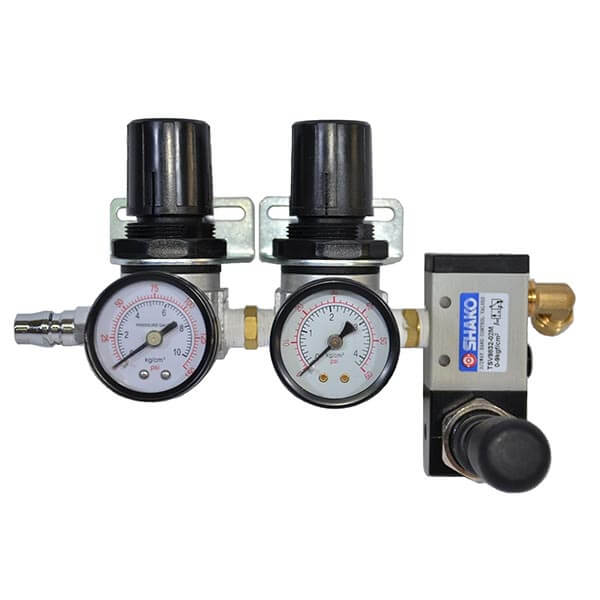

  • Air pressure controller:1set
  • Fixed frame:1set
  • Low pressure paint quick connect:1set
  • Air quick connect:1set
proimages/products/09Coating_Equipment/09-05-01PC-600.jpg
Paint Pressure Cup Specifications
Model PC-600
Material Aluminum A6061
Size Ø89x265mmL
Air Inlet Size 1/4"PT
Fluid Outlet 1/4"PT
Capacity 600cc
Pressure Resistance 5kg/cm²
Weight (Excluding Air Pressure Controller) 110g
