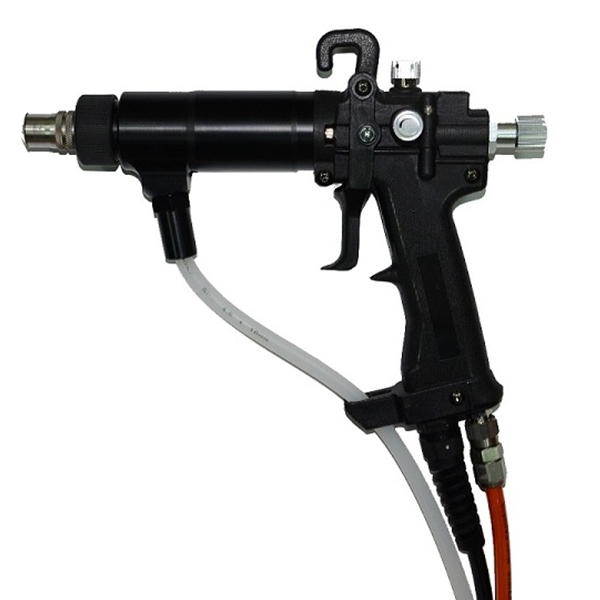

Name : Portable Air Electrostatic Spray Gun
Model : EG-206
  • Light weight,easy operation,high safety,long durability,paint saving,Suitabel or all kinds of painting conductive workpieces.
  • Can be more properly adjusted current as per different electric conduction of int.
  • High voltage output design is greater to adjusting range and wider utilization than other brands.
  • Alarm sounds by two steps can predict the painting situation and avoid abnormal use.
  • Segment nozzle or metal round nozzle is available to suit any requirements of various painting
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-01EG-206.jpg

EG-206 Gun

Portable Electrostatic Spray Gun Specifications:
H.V output adjust 0-60 KV
Max. spray flow 300 ml/min
Max. transfer efficiency(%) 85%
Gun length 270 mm
Gun net weight 0.5 kg
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-02Electrostatic-H.jpg

Electrostatic H.V

Electrostatic H.V Specifications
Voltage used 110 VAC or 220 VAC- Ø2 Switch
Non-load voltage DC-70 KV
Rated output DC-60 KV/ 50 µA
Output adjustment 0-60 KV Non-step adjustment
Way of output 1/100 sec. Discharge time ≦ 3 sec
Power consumption ≦ 250 W
Min. stating air pressure 2.5 kg /cm²
Size 200 mm x 158 mm x 240 mm
Net weight 8.2 kgs
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-03A-TYPE.jpg

A-TYPE

A-TYPE Round nozzle
Features & Used Uses in clear paint with good atomizing result.
Air consumption(L/min) 180 L/min
Spray flow(ml/min) 20-300 ml/min
Atomizing pressure 1.5-3.2 kg/cm²
Spray breadth(mm) Ø80~Ø160 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-04M-TYPE-.jpg

M-TYPE

M-Type Round Nozzle
Features & Used Used in the powder, Like the color power or silver powder.
Air consumption(L/min) 180 L/min
Spray flow(ml/min) 20-300 ml/min
Atomizing pressure 1.5-3.2 kg/cm²
Spray breadth(mm) Ø80~Ø160 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-05S-TYPE.jpg

S-TYPE

S-Type Round Nozzle
Features & Used Used in small work- piece and clear paint
Air consumption(L/min) 135 L/min
Spray flow(ml/min) 15-225 ml/min
Atomizing pressure 1.5-3.2 kg/cm²
Spray breadth(mm) Ø50~Ø120 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-02Portable_Air_Electrostatic/01-02-06SN-TYPE.jpg

SN-TYPE

SN-Type Sector Nozzle
Features & Used Used in the big area spray, like the tabletop
Air consumption(L/min) 350 L/min
Spray flow(ml/min) 50-300 ml/min
Atomizing pressure 2.5-4 kg/cm²
Spray breadth(mm) 40-250 mm
