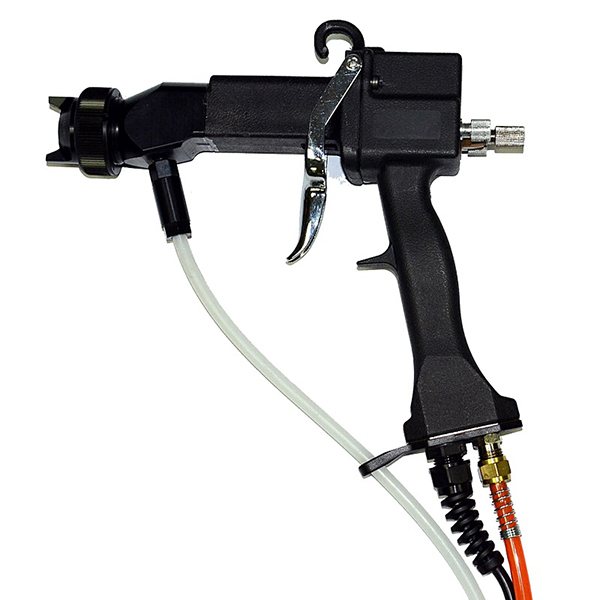

Name : Portable Electrostatic Spray Gun
Model : EG-120
  • Light weight,easy operation,high safety,long durability,paint saving,Suitabel or all kinds of painting conductive workpieces.
  • Can be more properly adjusted current as per different electric conduction of paint.
  • High voltage output design is greater to adjusting range and wider utilization than other brands.
  • Sector nozzle or metal round nozzle is available to suit any requir.
  • There are two audio alarm output, can predict spray situations, to avoid abnormal use.
  • H.V electrostatic is designed to power the gun, electrostatic cabinet becomes more lightweight, mini.
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-01EG-120.jpg

EG-120 Gun

Portable Air Electrostatic Spray Gun Specifications
Max. Used Voltage 0-60 KV
Max. Spray Flow 300 ml/min
Used Air Pressure 85 %
Gun Length 220 mm
Gun Net Weight 0.5 kg
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-02Electrostatic-H.V.jpg

Electrostatic H.V

Electrostatic H.V Specifications
Voltage Used AC 90-240 V
Non-load Voltage DC-70 KV
Rated Output DC-60 KV/ 50 µA
Output Adjustment 0-60 KV Non-step adjustment
Way of Output Air pressure control switch
Trip Time or Over-current 1/100sec.Discharge time≦3sec
Power Consumption ≦ 250 W
Min. Stating Air Pressure 2.5 kg /cm²
Size L190×W105×H210mm
Net Weight 5.5 kg
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-03A-TYPE.jpg

A-TYPE

A-TYPE Round nozzle
Features & Used Uses in clear paint with good atomizing result.
Air Consumption(L/min) 180 L/min
Spray Flow(ml/min) 20-300 ml/min
Atomizing Pressure 1.5-3.2 kg/cm²
Spray Breadth(mm) Ø80~Ø160 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-04M-TYPE.jpg

M-TYPE

M-Type Round Nozzle
Features & Used Used in the powder, Like the color power or silver powder.
Air Consumption(L/min) 180 L/min
Spray Flow(ml/min) 20-300 ml/min
Atomizing Pressure 1.5-3.2 kg/cm²
Spray Breadth(mm) Ø80~Ø160 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-05S-TYPE.jpg

S-TYPE

S-Type Round Nozzle
Features & Used Used in small work- piece and clear paint
Air Consumption(L/min) 135 L/min
Spray Flow(ml/min) 15-225 ml/min
Atomizing Pressure 1.5-3.2 kg/cm²
Spray Breadth(mm) Ø50~Ø120 300 mm
proimages/products/01Electrostatic_Spray_Gun/01-01Portable_Electrostatic/01-01-06SN-TYPE.jpg

SN-TYPE

SN-Type Sector Nozzle
Features & Used Used in the big area spray, like the tabletop
Air Consumption(L/min) 350 L/min
Spray Flow(ml/min) 50-300 ml/min
Atomizing Pressure 2.5-4 kg/cm²
Spray Breadth(mm) 40-250 mm
