Name : DISK AIR MOTOR
Model : WPAM-05
  • The disk coator is suitable for high volume production painting application with geometrical dimension allowing guidance on an almost circular path around the disk coator. Dimension allowing guidance on an almost path around possible is really.
  • Application the equipment is apply to fluid electrostatic coating for wooden-furniture , metal part, bicycle part , chair or frame spraying.
proimages/products/10Disk_Air_Motor/10-02DISK/disk-air-motor-0912-1.jpg

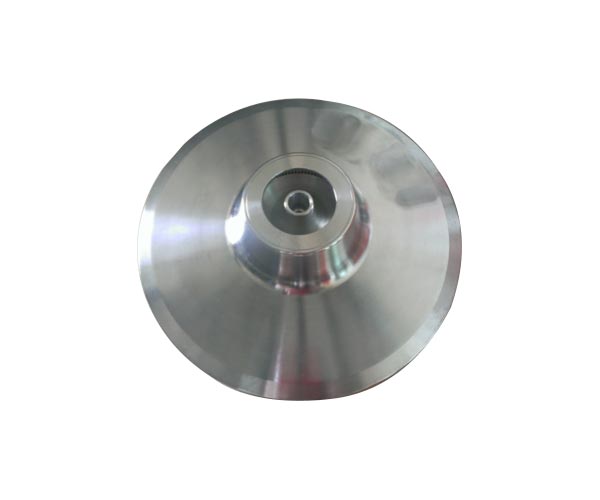

DISK Atomizer

proimages/products/10Disk_Air_Motor/10-02DISK/10-02-02-02WPAM-05.jpg

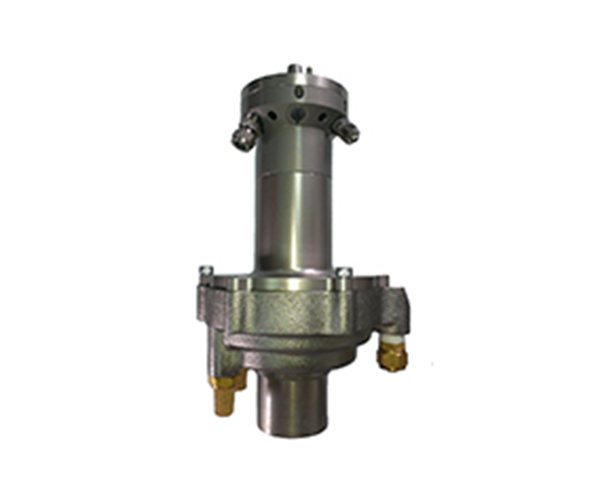

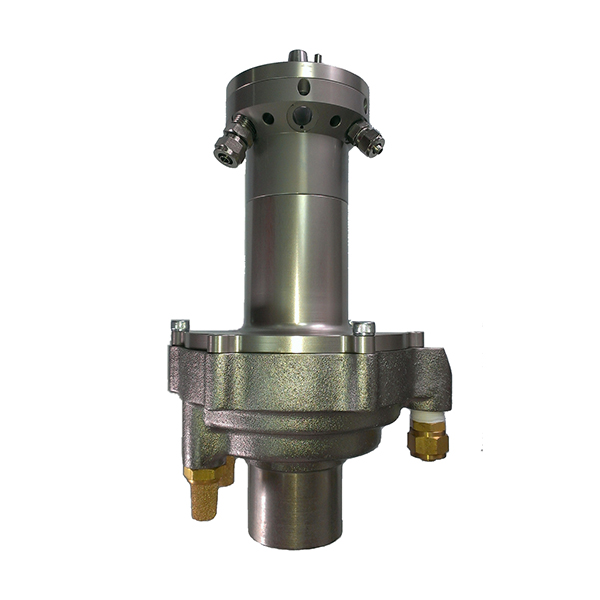

Air Motor for Disk

Disk Series Specifications
Model WPAM-05
Disk Diameter 100mm、170mm、220mm
Max. Rotational Speed 35000rpm
Operation Voltage 0-60KV
Shaping Air Consumption 20-500Nl/min
Rotary Air Consumption 100-1000Nl/min
Paint Fluid 0-500cc/min
Dimension Φ128 mm x L260 mm
Weight 2.84kg
