Mini Auto Spray Gun

Name : Mini Auto Spray Gun
Model : WAG-200S
Inquiry

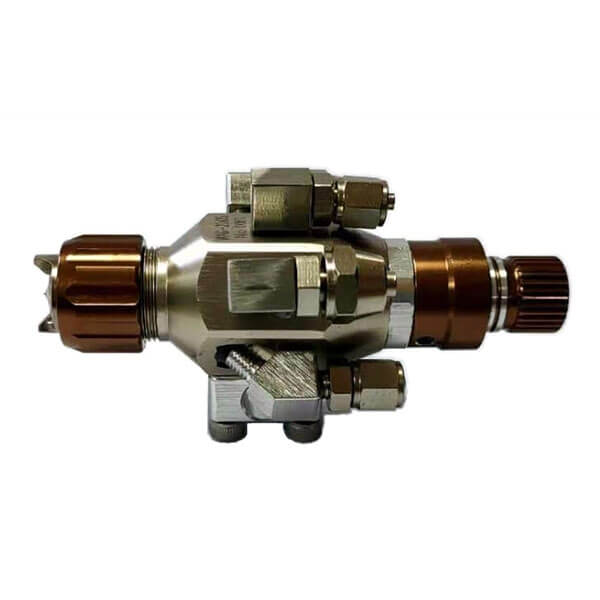

Sector Nozzle

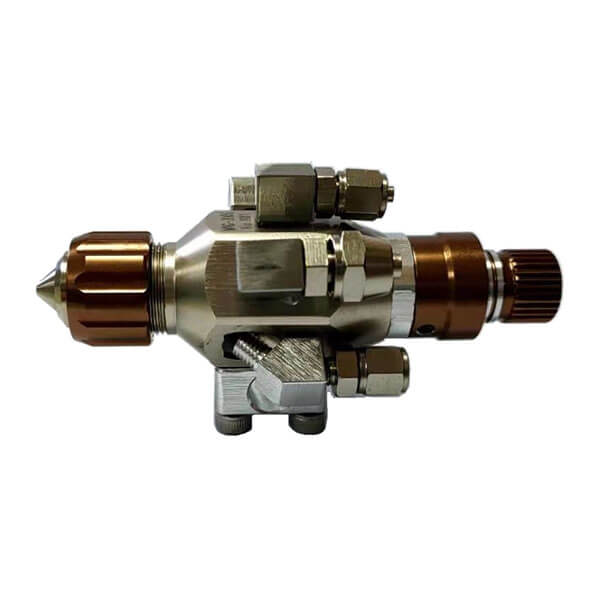

Round Nozzle
  • Lightweight spray gun, fine atomized particles, uniform distribution, concentrated paint, high adhesion efficiency, saving paint.
  • The material of the needle and the nozzle is SUS stainless steel, which can be used for water-based paint, and the surface is treated with a special film to increase wear resistance.
  • The parts of the spray gun are less, the cleaning and maintenance are quick and convenient
  • The atomizing air and spraying air are controlled by outside, the adjustment of the atomization does not need to stop the work, and the operation is simple.
  • The double paint hole design , paint inlet hole and return hole, it is more convenient to clean the paint flow channel
Mini Auto Spray Gun Specifications
Paint inlet 5 mm
Air inlet 5 mm
Paint supply Pressure
Max. Air using pressure 8 kg/cm²
Max paint pressure 6 kg/cm²
Nozzle bore(mm)  0.3、0.5、0.7
Control air press 4 ~ 6 kg/cm²
Wetted parts SUS316、 Teflon、Aluminum
Spray gun size(Flat air cap) 92 x 47 x 49 mm
Spray gun size(Round air cap) 94 x 47 x 49 mm
Temperature range 4.4 - 100℃
Weight 140 g
