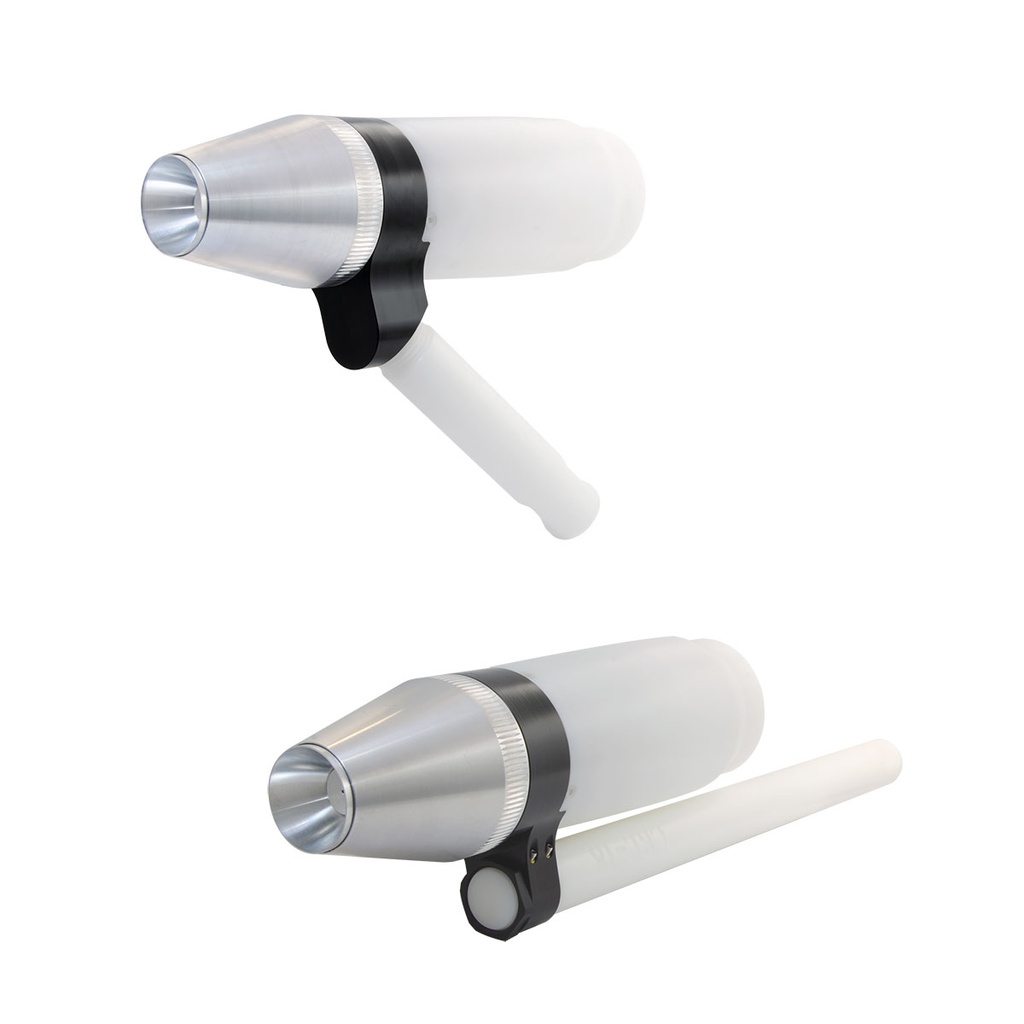

CBL-18
https://www.waipu.com.tw/web/image/product.template/6/image_1920?unique=dbc57e0
  • High-Efficiency Electrostatic Rotary Bell Coating The high-speed rotary bell atomizer combines centrifugal atomization with electrostatic spray coating technology to produce fine, uniform coating particles. This ensures a smooth, high-quality finish with excellent coating adhesion and high transfer efficiency, while significantly reducing paint consumption, overspray, and coating costs.
  • Ideal for Large and Long Workpieces Designed for efficient industrial automatic coating applications, the electrostatic rotary bell is ideal for coating large flat surfaces, long workpieces, and continuous production lines, providing consistent and uniform coating results.
  • Precise Paint Flow and Spray Pattern Control Paint flow rate and spray pattern can be precisely adjusted according to different workpiece sizes and coating requirements. Key coating parameters can be digitally monitored and managed, enabling stable, repeatable, and automated coating processes with easy operation.
  • Easy Maintenance and Modular Design The air motor and electrostatic system feature a modular, quick-release design for fast disassembly, inspection, and maintenance. This simplifies routine servicing, improves operational safety, and helps minimize equipment downtime.

    This combination does not exist.

    Applications/UsesSpecificationsAccessories-BellAccessories-Electrostatic Generator (HV)

    Applications/Uses

    • This Liquid Electrostatic Coating System is designed for high-efficiency industrial spray coating applications, including wooden furniture, metal parts, bicycle components, chairs, curtain walls, sound barriers, aluminum extrusions, steel structures, automotive bodies, machinery sheet metal, and frame-shaped components. The system delivers uniform coating quality, excellent adhesion, and high transfer efficiency for a wide range of industrial finishing applications.

    Specifications

      Model   CBL-18
      Dia. of Bell
    		   Ø30 mm
      Ø50 mm
      Max. Rotational Speed
    		  50,000 rpm
      Voltage Used
    		  0-60kV
      Shaping Air Consumption
    		  20-500 NI/min
      Rotary Air Consumption
    		  100-1,000 NI/min
      Spray Flow
    		  0-300 ml/min
      Size
    		  Ø100 × 300 mm
      Net Weight
    		  CBL-18-R=1.78kg (W/O 3-way valve)
      CBL-18-L =2.18kg (W/O 3-way valve)

    Accessories-Bell

    Bell Model  Applications Applicable Workpieces
    CBL18-30-A
    		 CBL18-50-A


    For general oil paint











    Ø30 mm: Small workpieces, pipe fittings
    Ø50 mm: Large parts ​⁣​
    CBL18-30-AG
    		CBL18-50-AG


    For transparent, oily paint 【high viscosity】
    CBL18-30-AT
    		CBL18-50-AT


    For water-base coatings
    CBL18-30-P
    		CBL18-50-P


    Particle powder paint, water / oil dual use

    Accessories-Electrostatic Generator (HV)

    Model DHA-15
    		 DC-600


    Electrostatic Generator (HV)

    Electrostatic Generator (HV)
    Voltage Used
    		 110V or 230V
    		 110V or 220V
    No-load Voltage
    		DC-100 kVDC-120 kV
    High Voltage Output Adjust
    		DC 0-120 kV/200μA
    		DC 0-120 kV/150μA
    Way of Output
    		Switch
    		Switch
    Overcurrent Trip Time
    		1/100sec.；Discharge time ≤ 2sec.
    		1/100sec.；Discharge time ≤ 2sec.
    Power Consumption
    		≤ 400W
    		≤ 400W
    Size
    		Control panel: L225 × W135 × H148 mm
    High voltage electrostatic: L180 × W112 × H255 mm
    		Control panel: L240 × W198 × H110  mm
    High voltage electrostatic: L255 × W150 × H300 mm
    Net Weight
    		Control panel: 3.5 kg
    High voltage electrostatic: 6 kg
    		Control panel: 3.8kg
    High voltage electrostatic: 6kg
    Applicable Coatings
    		Suitable for water-based coatings
    		Suitable for oil-based coatings
