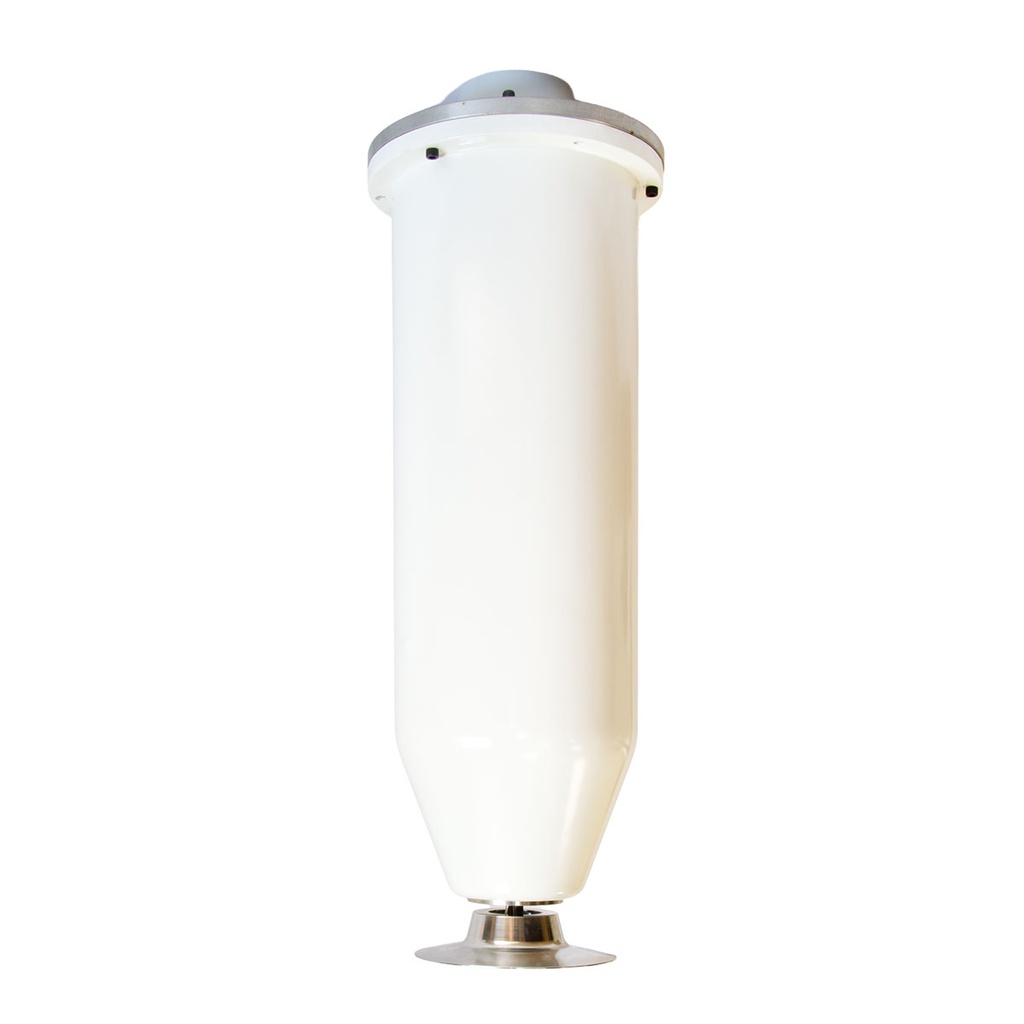

Air Motor-DISK

WPAM-05
https://www.waipu.com.tw/web/image/product.template/17/image_1920?unique=8d9e2e2
  • The paint is atomized through high-speed disk atomizer rotation and electrostatic micro-atomization, providing high-quality coating films with excellent adhesion while significantly reducing paint consumption.
  • Suitable for coating large flat surfaces and long workpieces.
  • Paint output and spray width can be adjusted according to workpiece requirements, allowing easy digitalized management and operation.
  • Maintenance is simple and safe. The air motor and electrostatic system can be quickly disassembled for maintenance and servicing.

    This combination does not exist.

    Applications/UsesSpecificationsAccessories-DISK AtomizerAccessories-Electrostatic Generator (HV)

    Applications/Uses

    • This equipment is designed for liquid electrostatic coating applications and is suitable for spraying wooden furniture, metal parts, bicycle components, motorcycle parts, chairs, curtain walls, noise barriers, aluminum extrusions, steel structures, automotive body panels, machine sheet metal, frame-type workpieces, and more.

    Specifications

      Model   WPAM-05
      Max. Rotational Speed
    		   35,000 rpm
      Voltage Used
    		  0-60kV
      Shaping Air Consumption
    		  20-500 Nl/min
      Rotary Air Consumption
    		  100-1,000 Nl/min
      Spray Flow
    		  0-500 ml/min
      Size
    		  Ø128 × L260 mm
      Net Weight
    		  2.84 kg

    Accessories-DISK Atomizer

    Dia. of DISK Atomizer

    Ø100 mm
    Ø140mm
    Ø170 mm
    Ø220 mm

    Accessories-Electrostatic Generator (HV)

    Model DHA-15
    		 DC-600


    Electrostatic Generator (HV)

    Electrostatic Generator (HV)
    Voltage Used
    		 110V or 230V
    		 110V or 220V
    No-load Voltage
    		DC-100 kVDC-120 kV
    High Voltage Output Adjust
    		DC 0-120 kV/200μA
    		DC 0-120 kV/150μA
    Way of Output
    		Switch
    		Switch
    Overcurrent Trip Time
    		1/100sec.；Discharge time ≤ 2sec.
    		1/100sec.；Discharge time ≤ 2sec.
    Power Consumption
    		≤ 400W
    		≤ 400W
    Size
    		Control panel: L225 × W135 × H148 mm
    High voltage electrostatic: L180 × W112 × H255 mm
    		Control panel: L240 × W198 × H110  mm
    High voltage electrostatic: L255 × W150 × H300 mm
    Net Weight
    		Control panel: 3.5 kg
    High voltage electrostatic: 6 kg
    		Control panel: 3.8kg
    High voltage electrostatic: 6kg
    Applicable Coatings
    		Suitable for water-based coatings
    		Suitable for oil-based coatings
