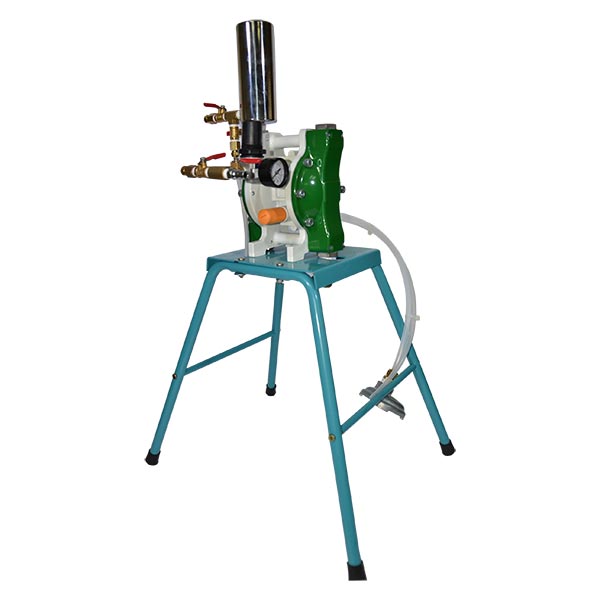

Name : 1/2" Air Operated Diaphragm Pump
Model : ADP-0120
  • Unlike cylindrical structures,which are easily jammed by impurities in supplied air , this swing type air valve is suited for poor air supply conditions.
  • Entre pump is easy to maintain.Parts maintenance or change are conveniently done without removing the unit.
  • Safe are conveniently done without removing the unit.
  • Safe and easy to operate.
1/2" Air Operated Diaphragm Pump Specifications
Pressure Ratio 1:1
Max. Output Pressure 7.2 kg/cm²
Max. Continuous Flow 20 lpm
Max. Suction Lift Level 3.7 m (12ft)
Max. Air Consumption 12 scfm
Max. Solids Convey 1.0m m(1/10in.)
Max. Air Valve Speed 330 cpm
Temperature Range 5 -65 °C
Paint Outlet Size 1/2"pt(f)
Noise Level 80 db(A)²
Paint Inlet Size 3/8"pt(f)
Diaphragm Material UPE+ Teflon
Air Inlet Size 1/4"pt(f)
Dimensions(mm) 175 x 130 x 207mm
Workplace Air Pressure Range 0.7~ 7.2 kg/cm²
Pump Body(N.W) 4 kgs
Pump Material  Aluminum
Package Weight(Standard) 8 kgs
