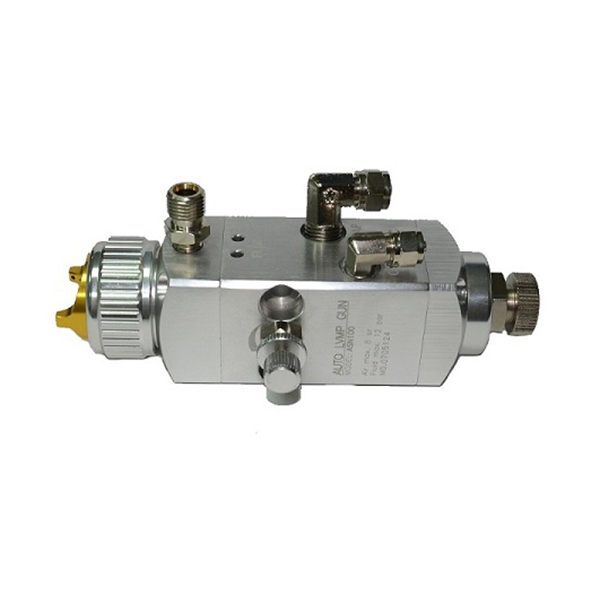

Air Auto Spray Gun

Name : Air Auto Spray Gun
Model : ASN-100
Inquiry
Air Auto Spray Gun
  • All parts coming into contact with materials are manufactured of stainless steel.
  • Special airflow design, reduce air pressure, save paints.
  • Even and symmetrical spray shape can form fine and flat painting surface.
  • Wear-resisting part design, seldom exchange after long time use.
Air Auto Spray Gun Specifications
Paint Inlet Size 1/4" PS (m)
Paint Return size  1/4" PS (m)
Max. Air Pressure 7 kg/cm²
Air. Consumption 220 ~ 260 L /mm
Spray Breadth 190 ~ 230 mm
Gun Size L170 * W 44 mm
Max. Fluid Output 150 ~ 250 m l/min
Max. Transfer Efficiency 74 %
Max. Paint Pressure 5 kg/cm²
Bore of Nozzle 0.8 / 1.1 / 1.4 mm
Weight  745 g
Air volume control typeASN-100-OC Main atomizer- Adjust the air volume by outside (Need to install solenoid valve to control air volume)
Spray Breadth- Adjust the air volume by outside (Need to install solenoid valve to control air volume)
ASN-100-2K Main atomizer- Adjust the air volume with the knob
Spray Breadth- Adjust the air volume with the knob
ASN-100 Main atomizer- Unable to adjust the atomization
Spray Breadth- Adjust the air volume with the knob
