Applications/Uses
- Suitable for liquid coating applications on wood, metal, plastic, leather, and other materials, including topcoat, primer, and clear coat spraying.
Specifications

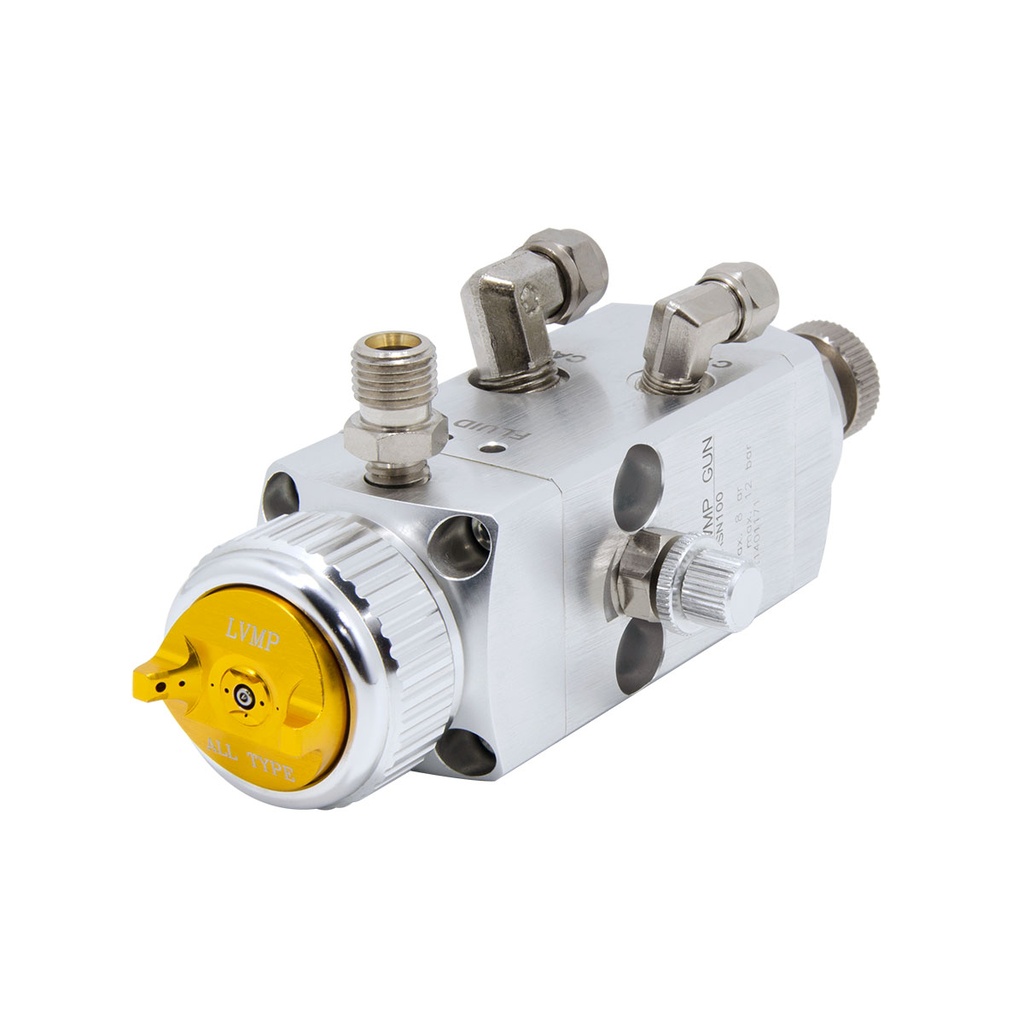

| Model | ASN-100 |
| Fluid Supply Type | P = Pressure |
| Bore of Nozzle | 0.8 / 1.1 / 1.4 mm |
| Air Inlet Size | 1/4"PT(CAP)、1/8"PT(FAN)、1/8"PT(CYL) |
| Paint Inlet Size | 1/4"PS(M) |
| Paint Return Size | 1/4"PS(M) |
| Max. Paint Pressure | 5 bar |
| Spray Flow | 150-250 ml/min |
| Max. Air Preesure | 7 bar |
| Adj. Width Breadth | 190-230 mm |
| Atomizing Pressure | 2-4 bar |
| Air Consumption | 220-260 L/mm |
| Material of Gun | Aluminum Alloy |
| Material of Nozzle & Tip | Stainless Steel |
| Temperature Range | 5-80 °C |
| Size | L168 × W44.2 × H44.2 mm |
| Net Weight | 0.75 kg |
| Air Volume Control Type | Main Atomizer - Unable to adjust the atomization Spray Breadth - Adjust the air volume with the knob |
