2-Way & 3-Way Valve (Square Type)

2W & 3W Series
https://www.waipu.com.tw/web/image/product.template/30/image_1920?unique=4e6b693

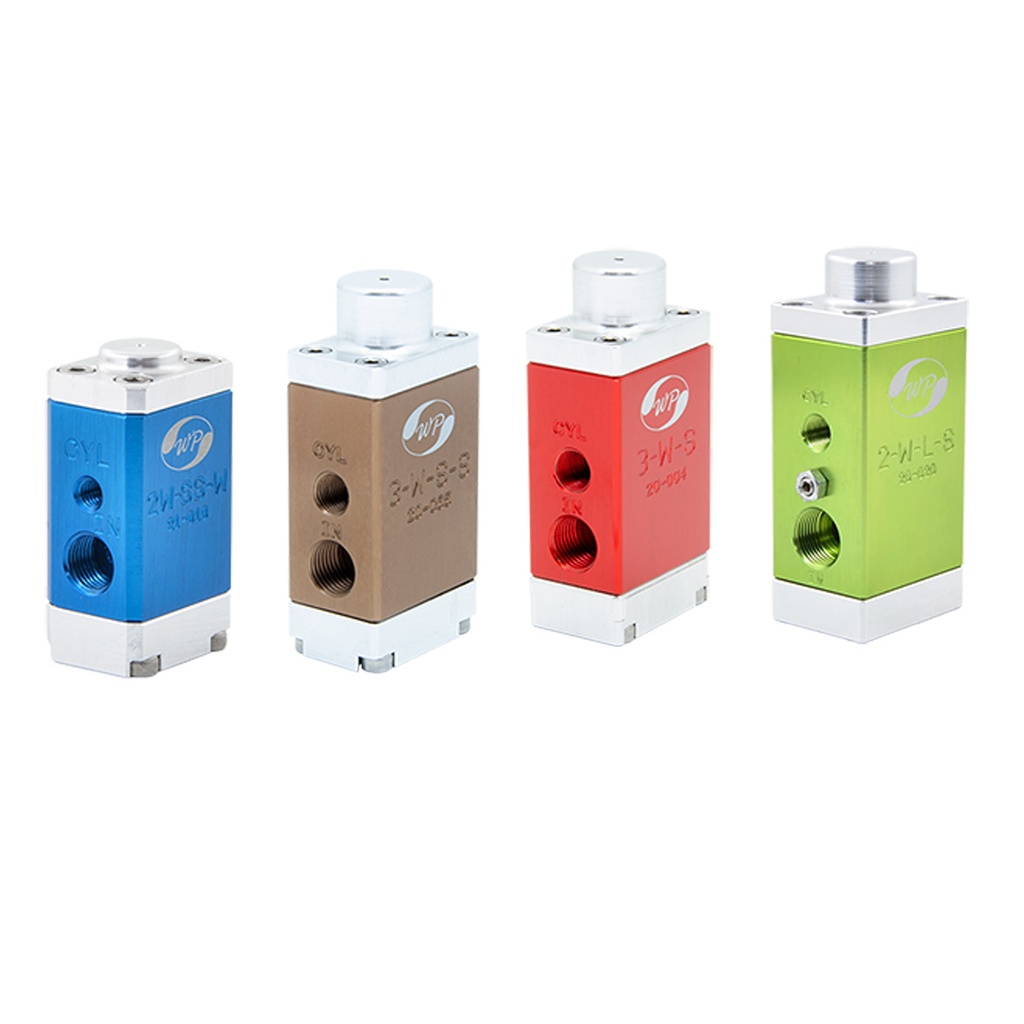

  • Using remote pneumatic control or PLC automation, the fluid directional control valve precisely controls the outlet or return flow of fluids such as oil, paint, coatings, and solvents. When used as a single valve, it regulates the paint supply flow and supports continuous fluid circulation, helping prevent paint sedimentation and maintain stable coating quality. When multiple valves are integrated, they can form an automatic paint color change system with automatic air or solvent flushing, providing an efficient fluid supply and cleaning solution for automated industrial coating systems.
  • The directional control valve is available in both round and square designs to meet different installation requirements. The compact square-type valve saves installation space and is especially suitable for automatic paint color change systems. For coatings containing abrasive particles, such as aluminum powder or metallic silver paint, which may cause wear on the valve needle and external fittings, a wear-resistant version is available. The valve needle and external fittings are made of SLD tool steel and heat-treated to enhance wear resistance, extend service life, and ensure reliable operation in demanding industrial coating applications.

Single Gun Type

Multiple Guns Type

Wear-Resistant Type

    This combination does not exist.

    Applications/UsesSpecifications

    Applications/Uses

    • Precision fluid metering valve applications
    • Automatic paint color change systems
    • Automatic flushing and cleaning systems
    • Two-component paint mixing systems

    Specifications

    Model
    		 2-W-L-W
    		 3-W-L-W
    		2-W-L-S3-W-L-S2-W-S-W3-W-S-W2-W-S-S3-W-S-S2W-SS-W3W-SS-W
    Function Categories
    		 Suitable for Water and Oil Wear-Resistant Type
    		Suitable for Water and OilWear-Resistant Type
    		Suitable for Water and Oil
    Main Features
    		Versatile Design with Excellent DurabilityDesigned for Highly Abrasive FluidsVersatile Design with Excellent DurabilityDesigned for Highly Abrasive FluidsVersatile Design with Excellent Durability
    Product Finish Color
    		Blue
    		Red
    		Green
    		Brown
    		Blue
    		Red
    		Green
    		Brown
    		Blue
    		Red
    Applications
    		For Multiple GunsFor Single GunGun-Mounted / Compact Design
    Paint Inlet Size
    		3/8"PT
    		3/8"PT
    		3/8"PT
    		3/8"PT
    		1/4"PT
    		1/4"PT
    		1/4"PT
    		1/4"PT
    		1/8"PT
    		1/8"PT
    Paint Outlet Size
    		3/8"PT
    		3/8"PT
    		3/8"PT
    		3/8"PT
    		1/4"PT
    		1/4"PT
    		1/4"PT
    		1/4"PT
    		1/8"PT
    		1/8"PT
    Paint Return Size
    		-3/8"PT
    		- 3/8"PT
    		-
    		1/4"PT
    		-1/4"PT
    		-1/8"PT
    Air Inlet Size
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		1/8"PT
    		M5
    		M5
    Max. Paint Pressure
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    		6 bar
    Min. Control Air Pressure
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    		4 bar
    Max. Spray Flow
    		12 L/min
    		12 L/min
    		12 L/min
    		12 L/min
    		2.2 L/min
    		2.2 L/min
    		2.2 L/min
    		2.2 L/min
    		0.9 L/min
    		0.9 L/min
    Wetted Parts
    		Stainless Steel / Aluminum Alloy / Teflon
    Wear-resistant type: The needle and connect are SLD (heat treatment).
    Temperature Range
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    		5 - 80°C
    Size
    		L34 × W44.5 × H101 mm
    		L34 × W44.5 × H101 mm
    		L34 × W44.5 × H101 mm
    		L34 × W44.5 × H101 mm
    		L25.4 × W38.1 ×
    H82 mm
    		L25.4 × W38.1 ×
    H82 mm
    		L25.4 × W38.1 ×
    H82 mm
    		L25.4 × W38.1 ×
     H82 mm
    		L19 × W25.4 × H49 mm
    		L19 × W25.4 × H49 mm
    Net Weight
    		0.35 kg
    		0.35 kg
    		0.35 kg
    		0.35 kg
    		0.18 kg
    		0.18 kg
    		0.18 kg
    		0.18 kg
    		0.05 kg
    		0.05 kg

    Remark：

    • The 2-W series does not support paint recirculation.
