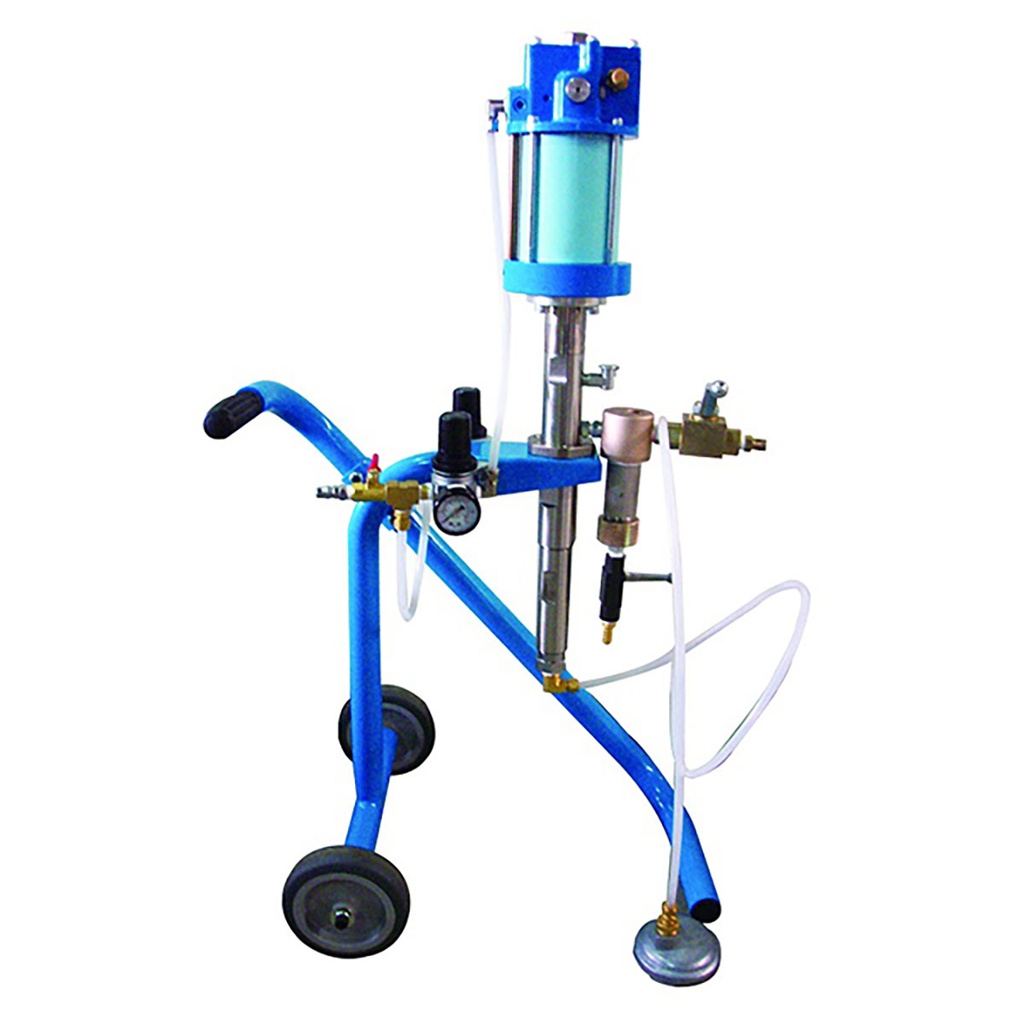

25:1 Air Powered Middle Pressure Paint Pump

Lightweight design for easy mobility.
One pump is designed to supply one spray gun, reducing purchasing costs.
Compatible with both high-pressure airless spray guns and medium-pressure assisted spray guns for customer selection.
When using water-based coatings, the APP-2504-S pump must be selected. All wetted parts connected to the fluid are made of SUS304 stainless steel, while the standard model uses galvanized steel tubing.

Applications/Uses

Suitable for primer and topcoat spraying on wood products, such as tabletops.
Suitable for coating applications requiring finer atomization performance.
Suitable for steel structure industries, including soundproofing and fireproof wall coating applications.
Suitable for coating applications on container exteriors.

Model	APP-2504
Pressure Ratio	25:1
Max. Spray Flow	4 L/min
Volume/Cycle	72 cc
Workplace Air Pressure Range	2-7 bar
Air Motor Diameter	Ø85 mm
Air Inlet Size	1/8“PS
Paint Inlet Size	1/2“PS
Paint Outlet Size	1/2“PS
Pump Body (N.W.)	20 kg
Packing Material	Teflon
Temperature Range	4.4-70°C
Noise Level	60 dB(A)
Pump Size	D120 x L600 mm
