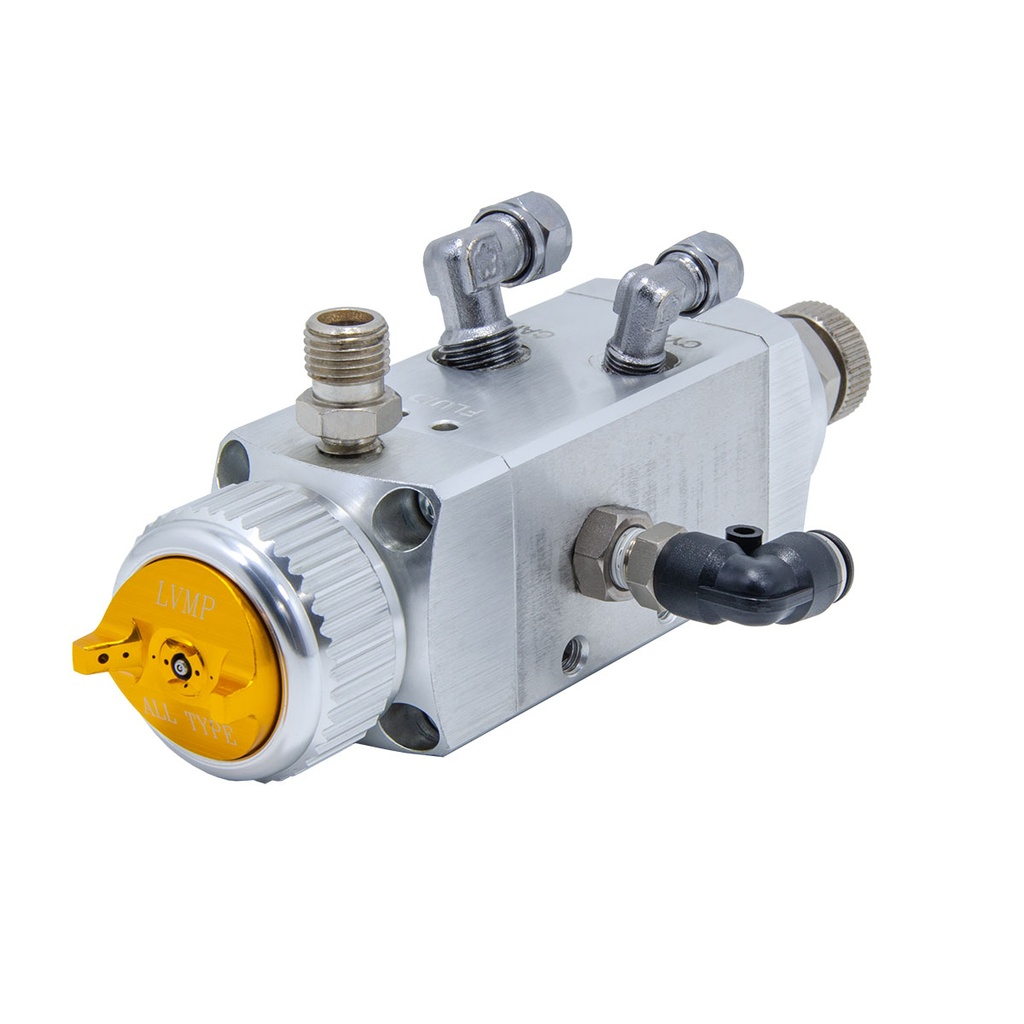

Air Auto Spray Gun

Stainless steel wetted parts: All parts in contact with coating material are made of stainless steel.
Paint-saving airflow design: The special airflow design reduces air pressure and improves paint transfer efficiency.
Uniform atomization and smooth coating surface: Symmetrical spray pattern provides excellent coating quality.
High wear-resistant components: Durable for long-term use, reducing replacement frequency.
Fine atomization, paint-saving, and uniform coating: Delivers high overall efficiency and excellent transfer efficiency.
LVMP (Low Volume Medium Pressure) Atomization Technology: Utilizing LVMP technology, it achieves stable and fine atomization with low air consumption, effectively improving paint transfer efficiency and reducing overspray while balancing coating quality with production efficiency.

Applications/Uses

Suitable for liquid coating applications on wood, metal, plastic, leather, and other materials, including topcoat, primer, and clear coat spraying.

Model	ASN-100-OC
Fluid Supply Type	P = Pressure
Bore of Nozzle	0.8 / 1.1 / 1.4 mm
Air Inlet Size	1/4"PT(CAP)、1/8"PT(FAN)、1/8"PT(CYL)
Paint Inlet Size	1/4"PS(M)
Paint Return Size	1/4"PS(M)
Max. Paint Pressure	5 bar
Spray Flow	150-250 ml/min
Max. Air Preesure	7 bar
Adj. Width Breadth	190-230 mm
Atomizing Pressure	2-4 bar
Air Consumption	220-260 L/mm
Material of Gun	Aluminum Alloy
Material of Nozzle & Tip	Stainless Steel
Temperature Range	5-80 °C
Size	L168 × W44.2 × H44.2 mm
Net Weight	0.75 kg
Air Volume Control Type	Main Atomizer - Adjust the air volume by outside (Need to install solenoid valve to control air volume) Spray Breadth - Adjust the air volume by outside (Need to install solenoid valve to control air volume)
