Applications/Uses
- Suitable for liquid coating applications on wood, metal, plastic, leather, and other materials, including topcoat, primer, and clear coat spraying.
Specifications

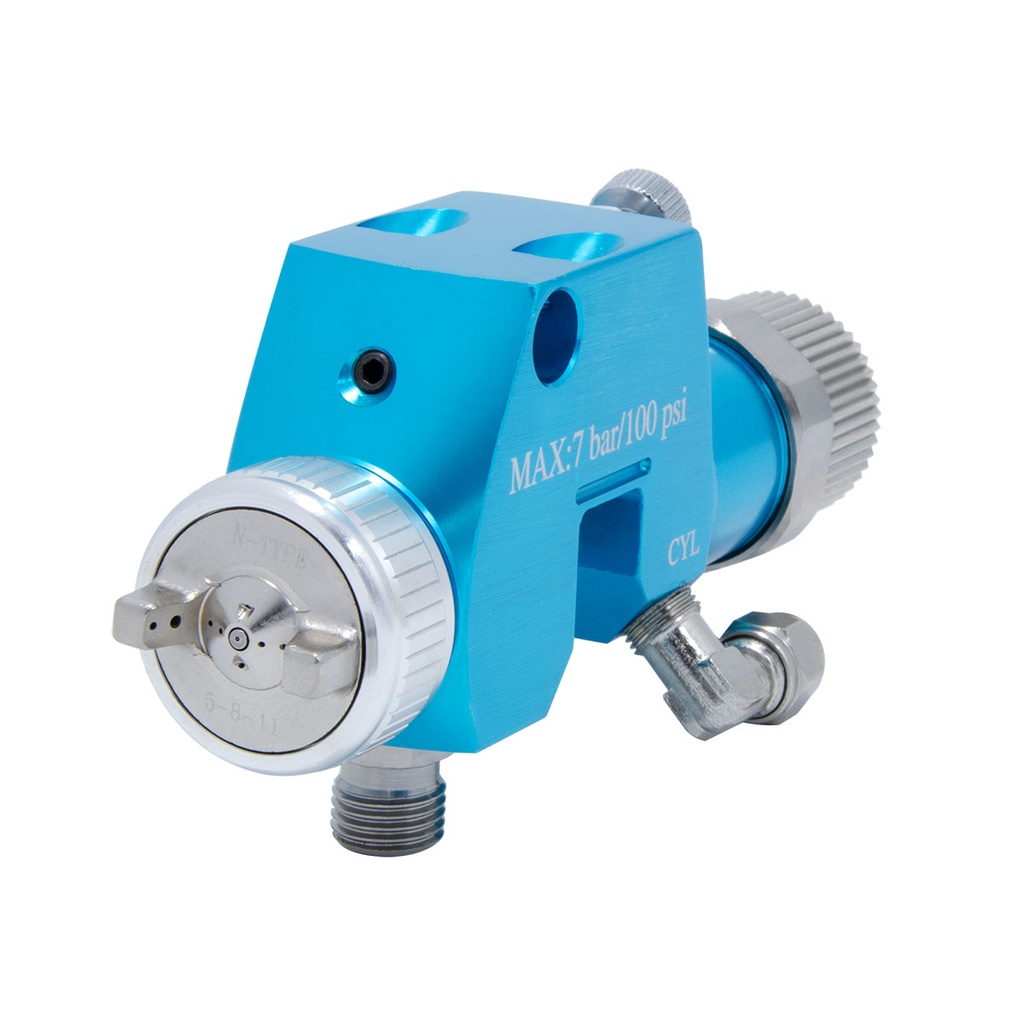

| Model | WS-03 |
| Fluid Supply Type | P = Pressure |
| Bore of Nozzle | 0.5 / 0.8 / 1.1 / 1.4 / 1.8 mm |
| Air Inlet Size | 1/8"PT |
| Paint Inlet Size | 1/4"PS(M) |
| Paint Return Size | - |
| Air Cap | E、M、N type |
| Paint Pressure | 4 bar |
| Spray Flow | 1-400 ml/min |
| Max. Air Pressure | 7 bar |
| Adj. Width Breadth | 50-300 mm |
| Atomizing Pressure | 2-4 bar |
| Air Consumption | 80-350 L/min |
| Material of Gun | Aluminum Alloy / Copper |
| Material of Nozzle & Tip | Stainless Steel |
| Temperature Range | 5-80 °C |
| Size | L138.5 × W32 × H50.8 mm |
| Net Weight | 0.43 kg |
Accessories-Air Cap
| Name | E-Type Air Cap |
M-Type Air Cap | N-Type Air Cap |
 |  |  | |
| Features & Used |
Suitable for wide spray pattern applications. Compatible with paint cup or pump feeding. Provides relatively coarse atomization. Suitable for primer and sealer applications. |
Suitable for narrower spray pattern applications. Can be used with a paint cup or pump. Provides excellent atomization performance. | Only suitable for pressurized paint supply systems, such as pumps or paint tanks. Provides finer atomization than M-Type. |
