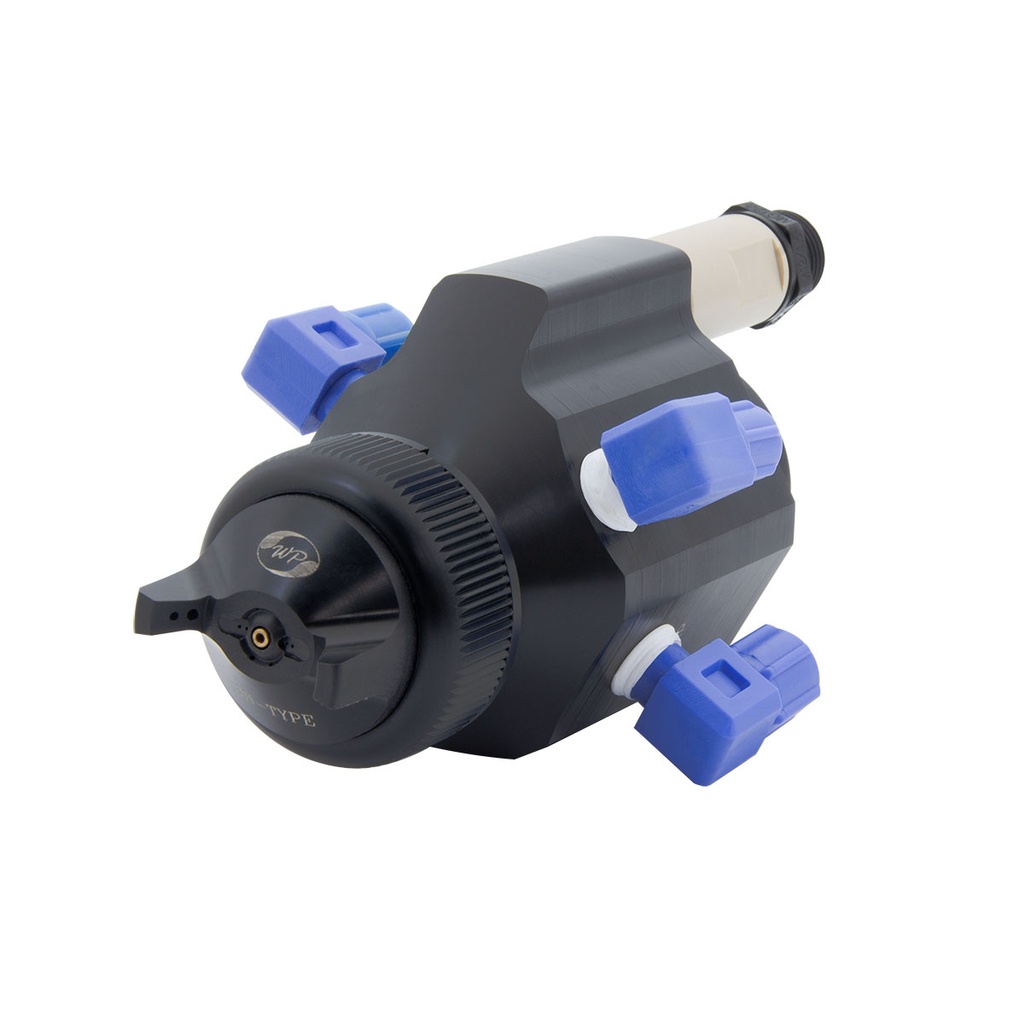

Auto Electrostatic Spray Gun

ESA-23
https://www.waipu.com.tw/web/image/product.template/4/image_1920?unique=682d6bf
  • External Control Design: Air pressure and paint flow can be adjusted directly from outside the machine for faster and more convenient operation.
  • Compact spray gun design allows installation on robotic arms, providing greater flexibility for complex movements. It also supports multi-gun installation to meet different coating requirements.
  • Smaller and lighter than conventional electrostatic spray guns, reducing the load carried by the robot arm during operation.
  • The spray gun body is made of molded plastic material, offering improved insulation performance and enhanced safety.
  • The electrostatic high-voltage generator allows adjustable current output to suit different coating materials.

    This combination does not exist.

    Applications/UsesSpecificationsAccessories-NozzleAccessories-Electrostatic Generator (HV)

    Applications/Uses

    • ESA-23 features a compact and lightweight design, suitable for installation on reciprocating spray machine and robotic arms.
    • Suitable for automotive industry coating applications.
    • Suitable for coating applications in the home appliance and metal products industries.
    • Suitable for coating applications in the wood and furniture industries.
    • Suitable for coating applications in the machinery and bicycle industries.
    • Suitable for coating applications in the electronics and precision parts industries.

    Specifications

      Model   ESA-23
      Paint Inlet Size
    		   1/8”PT
      Air Inlet Size
    		  1/8”PT
      High Voltage Output Adjust
    		  DC-50 kV MAX
      Max. Spray Flow
    		  300 ml/min
      Used Air Pressure
    		  2-5 bar
      Size
    		  W60 x H69 x L130 mm
      Net Weight
    		  0.35 kg

    Accessories-Nozzle

    Name A-Type Round Nozzle
    		 M-Type Round Nozzle
    		S-Type Round NozzleSN-Type Sector Nozzle





    Features & Used
    		 Used in clear paint with good atomizing result.
    		 Used in the powder, like the color powder or silver powder.
    		Used in small work- piece and clear paint.Used in the big area spray, like the tabletop.
    Air Consumption
    		180 L/min
    		180 L/min
    		135 L/min
    		350 L/min
    Spray Flow
    		20-300 ml/min
    		20-300 ml/min
    		15-225 ml/min
    		50-300 ml/min
    Atomizing Pressure
    		1.5-3.2 bar
    		1.5-3.2 bar
    		1.5-3.2 bar2.5-4 bar
    Spray Breadth
    		Ø80~Ø160 300 mm
    		Ø80~Ø160 300 mm
    		Ø50~Ø120 300 mm
    		40-250 mm

    Accessories-Electrostatic Generator (HV)

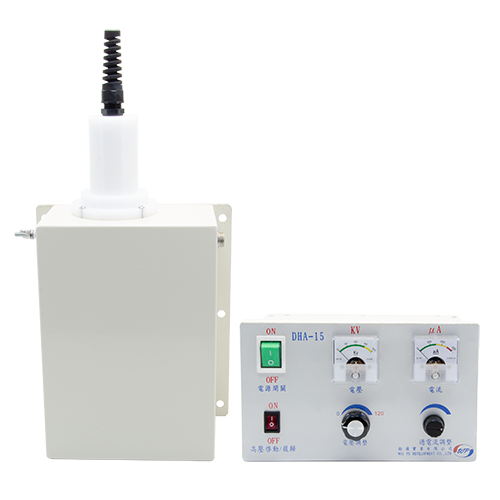

    Model DHA-15

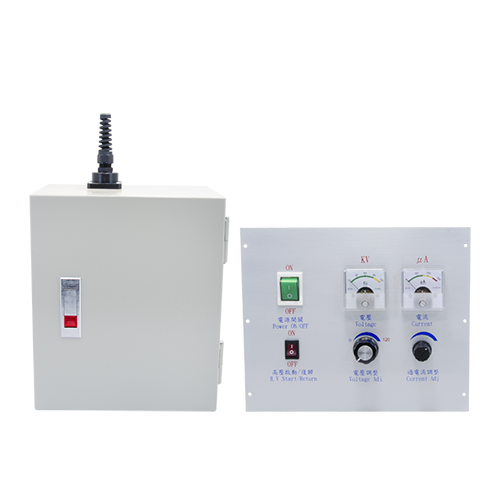

    		 DC-600


    Electrostatic Generator (HV)

    Electrostatic Generator (HV)
    Voltage Used
    		 110V or 230V
    		 110V or 220V
    No-load Voltage
    		DC-100 kVDC-120 kV
    High Voltage Output Adjust
    		DC 0-120 kV/200μA
    		DC 0-120 kV/150μA
    Way of Output
    		Switch
    		Switch
    Overcurrent Trip Time
    		1/100sec.；Discharge tim ≤ 2sec.
    		1/100sec.；Discharge tim ≤ 2sec.
    Power Consumption
    		≤ 400W
    		≤ 400W
    Size
    		Control panel: L225 × W135 × H148 mm
    High voltage electrostatic: L180 × W112 × H255 mm
    		Control panel: L240 × W198 × H110  mm
    High voltage electrostatic: L255 × W150 × H300 mm
    Net Weight
    		Control panel: 3.5 kg
    High voltage electrostatic: 6 kg
    		Control panel: 3.8kg
    High voltage electrostatic: 6kg
    Applicable Coatings
    		Suitable for water-based coatingsSuitable for oil-based coatings
