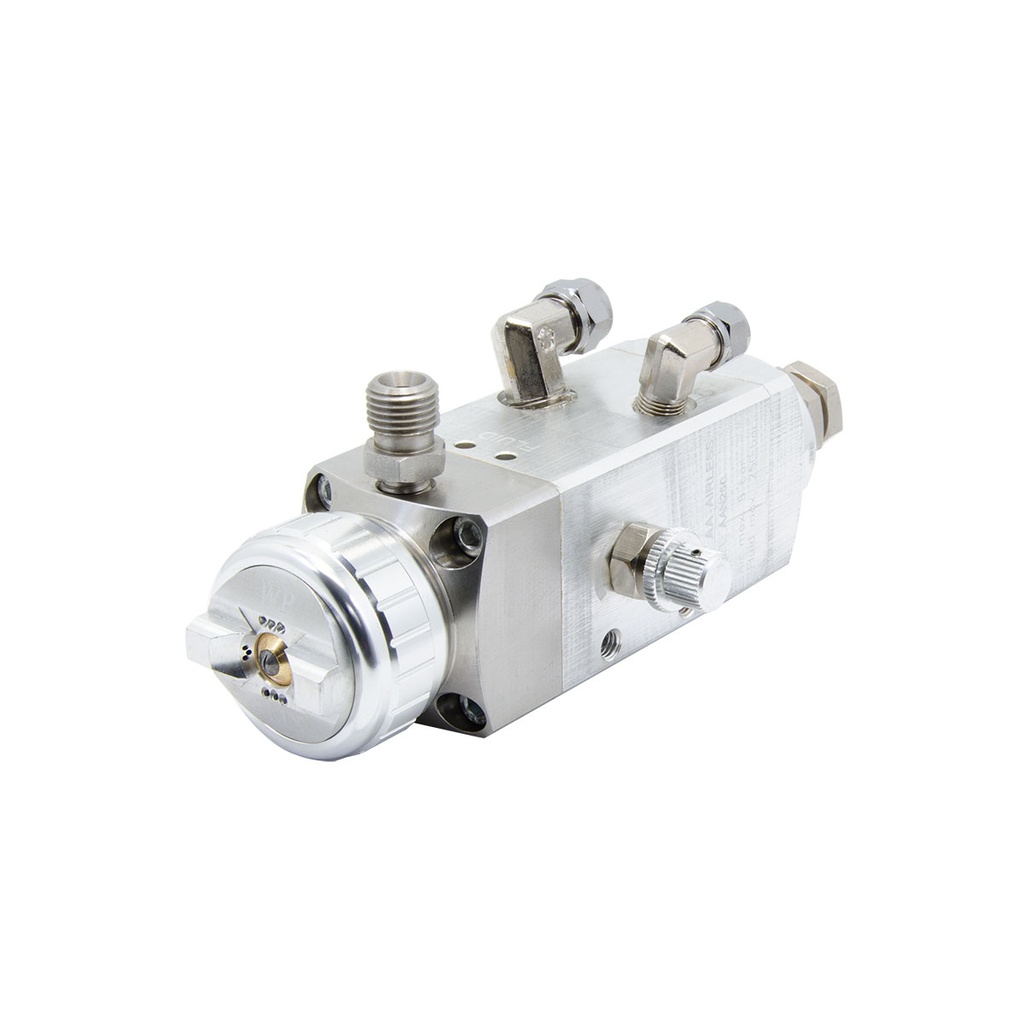

Automatic Medium-Pressure Air-Assisted Spray Gun

Low bounce-back and paint-saving performance: extremely low spray bounce-back significantly reduces overspray mist and spray booth contamination.
Fine atomization with adjustable spray pattern: dual auxiliary air ports allow spray pattern adjustment and improve atomization quality.
Low equipment investment: achieves excellent atomization performance when paired with a medium-pressure paint pump.
High wear-resistant sealing: tungsten carbide valve design ensures stable sealing performance over long operating periods.
Excellent thick-film formation: easier to apply thicker coating films.
Suitable for medium- to high-viscosity coatings: highly adaptable to different coating viscosities without viscosity limitations.
Stable spray pattern: produces a consistent flat-fan spray pattern with stable performance.
LVMP (Low Volume Medium Pressure) Atomization Technology: Utilizing LVMP technology, it achieves stable and fine atomization with low air consumption, effectively improving paint transfer efficiency and reducing overspray while balancing coating quality with production efficiency.

Applications/Uses

Suitable for primer and topcoat spraying on wooden products, teflon coating application, kitchen cabinet doors, and door panels.
Suitable for spraying large flat metal or plastic workpieces.

Model	AAN-250
Bore of Nozzle	0.07-0.25 mm
Air Inlet Size	1/4"PT(CAP)、1/8"(CYL)
Paint Inlet Size	1/4"PS(M)
Paint Return Size	1/4"PS(M)
Max. Paint Pressure	200 bar
Max. Air Preesure	7 bar
Atomize Assisted Air Pressure	0-4 bar
Material of Gun	Aluminum Alloy
Material of Nozzle & Tip	Stainless Steel
Temperature Range	4.4-70°C
Size	L172 × W44.2 × H44.2 mm
Net Weight	0.93 kg
Spray Angle	10ﾟ- 80ﾟ
Max. Transfer Efficiency	60%
