Fluid Convey Gear Pump–Clean Type

K-PUMP-CW
https://www.waipu.com.tw/web/image/product.template/9/image_1920?unique=e4b27a9

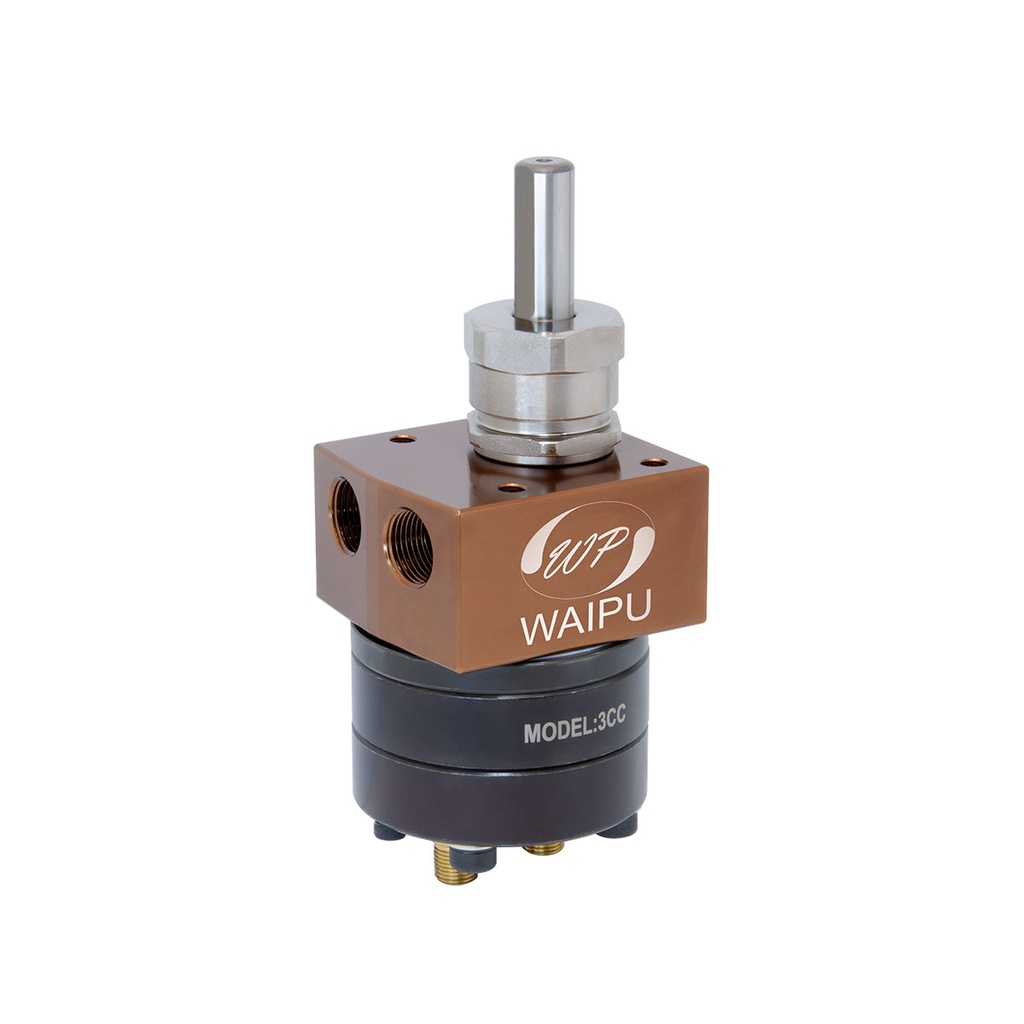

The Cleaning Type Gear Pump is specifically designed for paint transfer applications requiring regular cleaning and maintenance. It provides stable and precise fluid delivery while allowing cleaning and maintenance of coatings prone to leakage or drying, helping minimize the impact of paint residue and dried coating buildup on gear operation.
The pump can be integrated with a motor and Variable Frequency Drive (VFD) to adjust operating speed and regulate fluid flow according to specific process requirements. It is ideal for precision paint metering, automated spray coating, and industrial coating systems requiring periodic cleaning and maintenance, helping maintain equipment reliability and consistent coating quality.

  • Cleaning and Maintenance Design: Designed for coating applications involving paints prone to leakage or drying, allowing cleaning and maintenance to minimize the impact of paint residue on gear operation.
  • Reduced Risk of Paint Drying and Buildup: Proper cleaning procedures help minimize residual paint drying and accumulation, reducing the risk of gear sticking or jamming.
  • Stable and Consistent Fluid Delivery: Utilizes a positive displacement gear mechanism to provide continuous and stable fluid transfer, ensuring consistent material supply throughout the production process.
  • Precision Flow Control: Can be integrated with a motor and Variable Frequency Drive (VFD) to adjust operating speed and regulate paint flow rates according to specific process requirements.
  • Improved Maintenance Convenience: Cleaning procedures can be scheduled according to coating properties, helping reduce maintenance issues caused by residual paint buildup.
  • Automated System Integration: Compatible with automatic spray guns, robotic arms, and automated coating equipment, supporting precision paint metering and continuous fluid delivery.

    This combination does not exist.

    Applications/Uses

    • Particle-Containing and Sediment-Prone Coating Transfer: Suitable for transferring coatings containing aluminum powder, silver powder, powder coatings, and PE paints that are prone to sedimentation or residue buildup. When integrated with a solvent supply system and operated under appropriate pressure, solvent flushing can be performed to reduce the impact of coating deposits on gear operation.
    • Drying-Prone Coating Transfer: Ideal for paint supply processes involving coatings prone to residue buildup, adhesion, or drying. Proper cleaning procedures help minimize paint accumulation and reduce the risk of gear sticking or jamming.
    • Precision Paint Metering: Suitable for precision spray coating processes requiring accurate control of paint flow rates. Provides stable and continuous fluid delivery to ensure consistent material supply.
    • Automated Coating Systems: Can be integrated with automatic spray guns, robotic arms, and related control equipment to meet the stable paint supply requirements of automated spray coating production lines.
    • Periodic Cleaning and Maintenance Applications: Designed for industrial fluid supply systems requiring regular cleaning. Solvent flushing helps reduce paint residue and sediment buildup, supporting reliable pump operation.

    Cleaning System Operating Instructions

    • Set the cleaning solvent supply pressure according to the operating pressure used for coating delivery. The coating supply pressure and cleaning solvent supply pressure must be equal to prevent the coating and solvent from mixing.
      Example: Coating supply pressure: 2 bar = Cleaning solvent supply pressure: 2 bar.

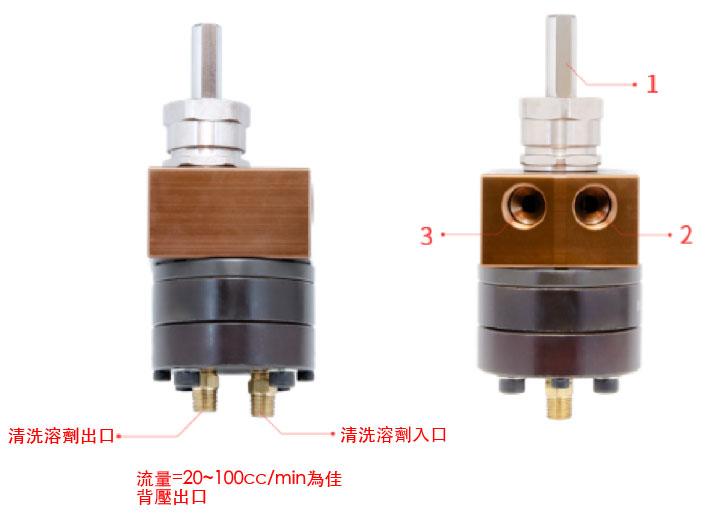

    • When 1 rotates clockwise, 2 is the coating outlet and 3 is the coating inlet.
    • When 1 rotates counterclockwise, 2 is the coating inlet and 3 is the coating outlet.

    Specifications

    Specifications / Model ​⁣​
    K-PUMP-CW-3K-PUMP-CW-5
    Displacement
    3 cc/rev
    5 cc/rev

    Pressure
    Rated
    0.5 bar
    0.5 bar
    Max.
    4 bar
    4 bar

    Rotational Speed
    Paint Supply
    20-100 rpm
    20-100 rpm
    Quick Cleaning
    150-200 rpm
    150-200 rpm


    Size
    A17 mm
    28 mm
    L1142 mm
    153 mm
    L2150 mm 161 mm

    Paint Inlet/Outlet
    Inlet
    3/8"PT
    3/8"PT
    Outlet
    3/8"PT
    3/8"PT

    Clean Paint Inlet/Outlet
    Inlet
    1/8"PT
    1/8"PT
    Outlet
    1/8"PT
    1/8"PT
    Net Weight
    1.5 kg
    1.75 kg

    Accessories

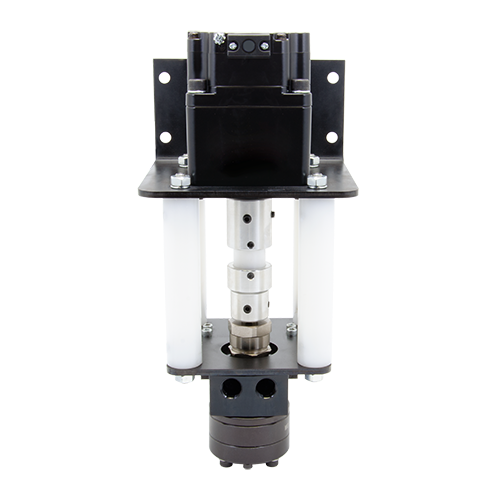

    Name Brushless Motor - Standard Type

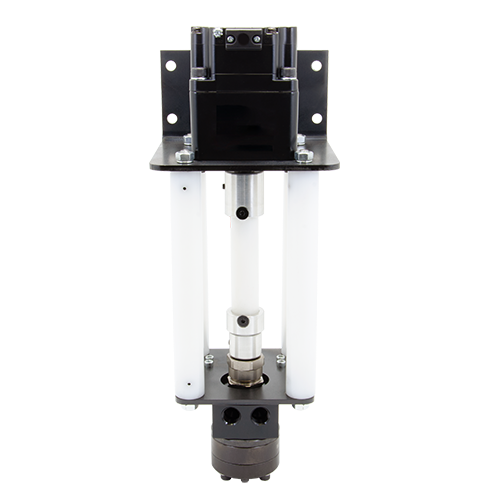

    Brushless Motor - Electrostatic Type

    Model BMPF-S: For Ø6 mm gear pump shaft
    BMPF-L: For Ø12.7 mm gear pump shaft
    BMPF-S-HV: For Ø6 mm gear pump shaft
    BMPF-L-HV: For Ø12.7 mm gear pump shaft
    Size
    BMPF-S: L160 × W150 × H254 mm
    BMPF-L: L160 × W150 × H279 mm
    BMPF-S-HV: L160 × W150 × H331 mm
    BMPF-L-HV: L160 × W150 × H354 mm
