Applications/Uses
- Suitable for liquid coating applications on wood, metal, plastic, leather, and other materials, including topcoat, primer, and clear coat spraying.
Specifications

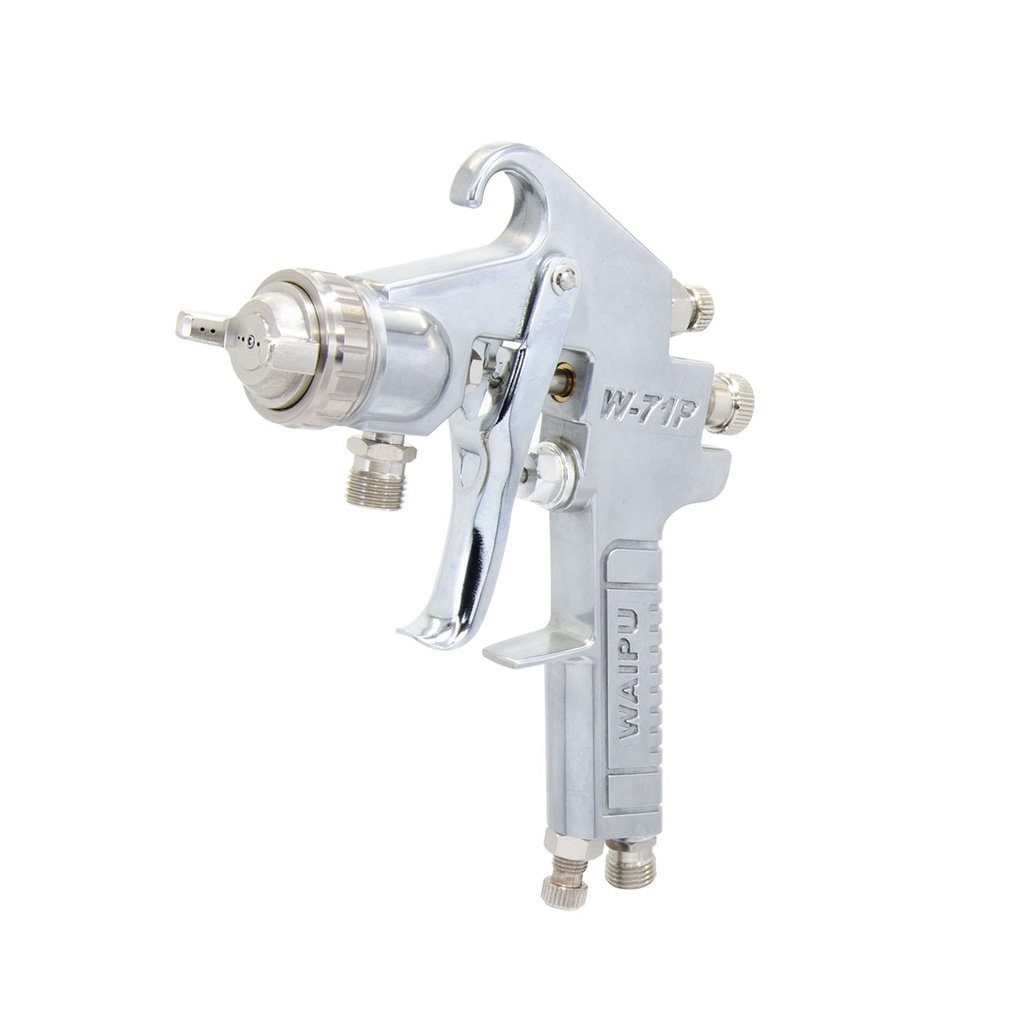

| Model | W-71P |
| Fluid Supply Type |
G = Gravity P = Press S = Suction |
| Bore of Nozzle | 1.0 / 1.3 / 1.5 / 1.8 mm |

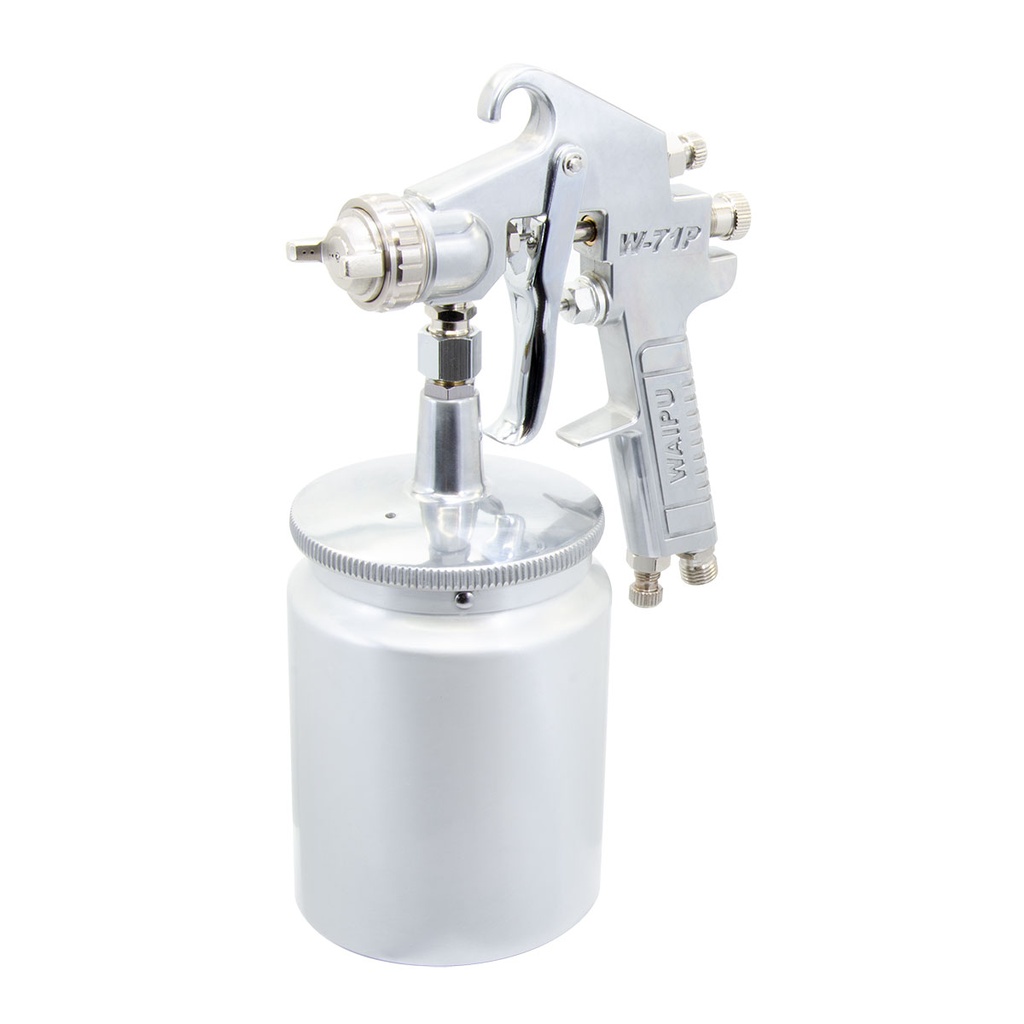

| Paint Cup (Suction) | 1,000 cc / 600 cc |

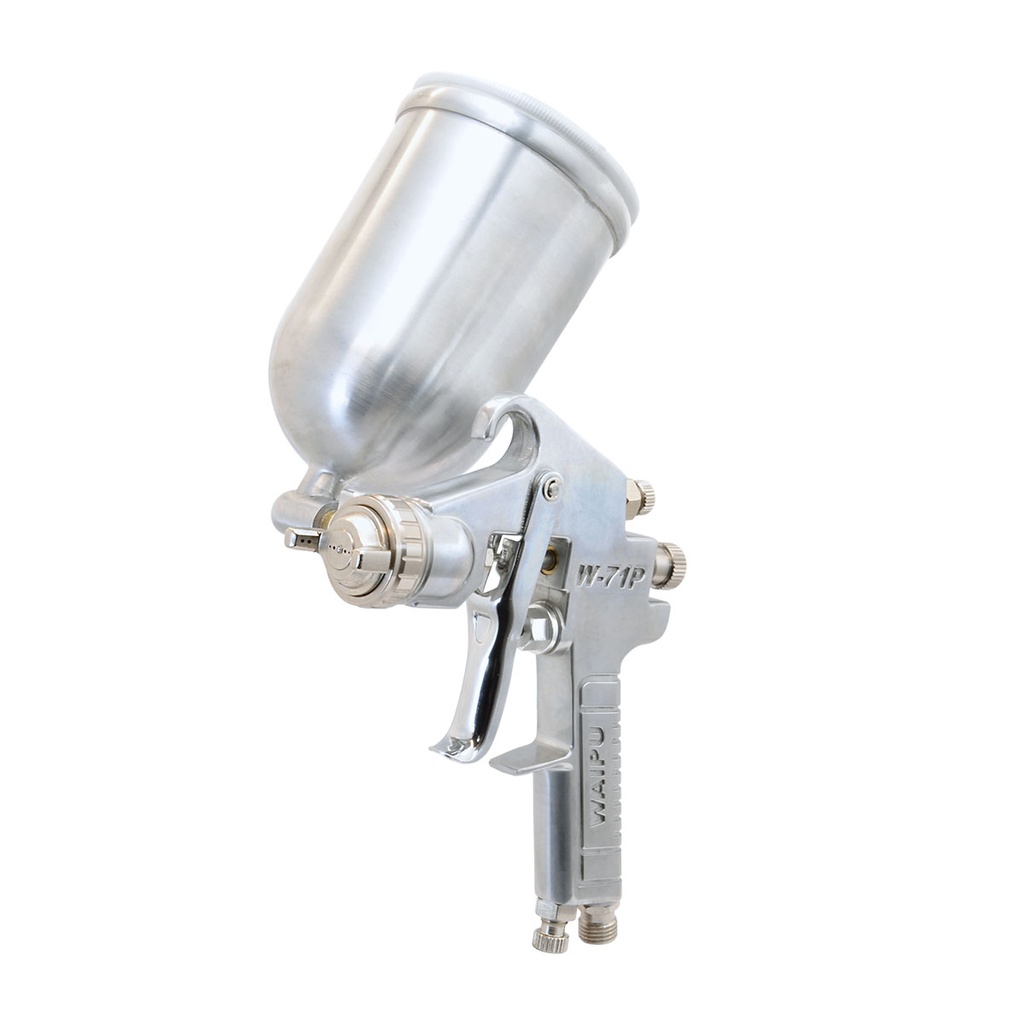

| Gravity | 150 cc / 250 cc / 400 cc |
| Air Cap | Air Cap for W-71P |
| Air Inlet Size | 1/4"PS(M) |
| Paint Inlet Size | 1/4"PS(M) |
| Max. Paint Pressure | 4 bar |
| Spray Flow | 1-450 ml/min |
| Max Air Pressure | 7 bar |
| Adj. Width Breadth | 50-250 mm |
| Atomizing Pressure | 2-4 bar |
| Air Consumption | 80-280 L/min |
| Material of Gun | Aluminum Alloy / Copper |
| Material of Nozzle & Tip | Stainless Steel |
| Size | L145 × H180 mm |
| Net Weight | 0.46 kg |
