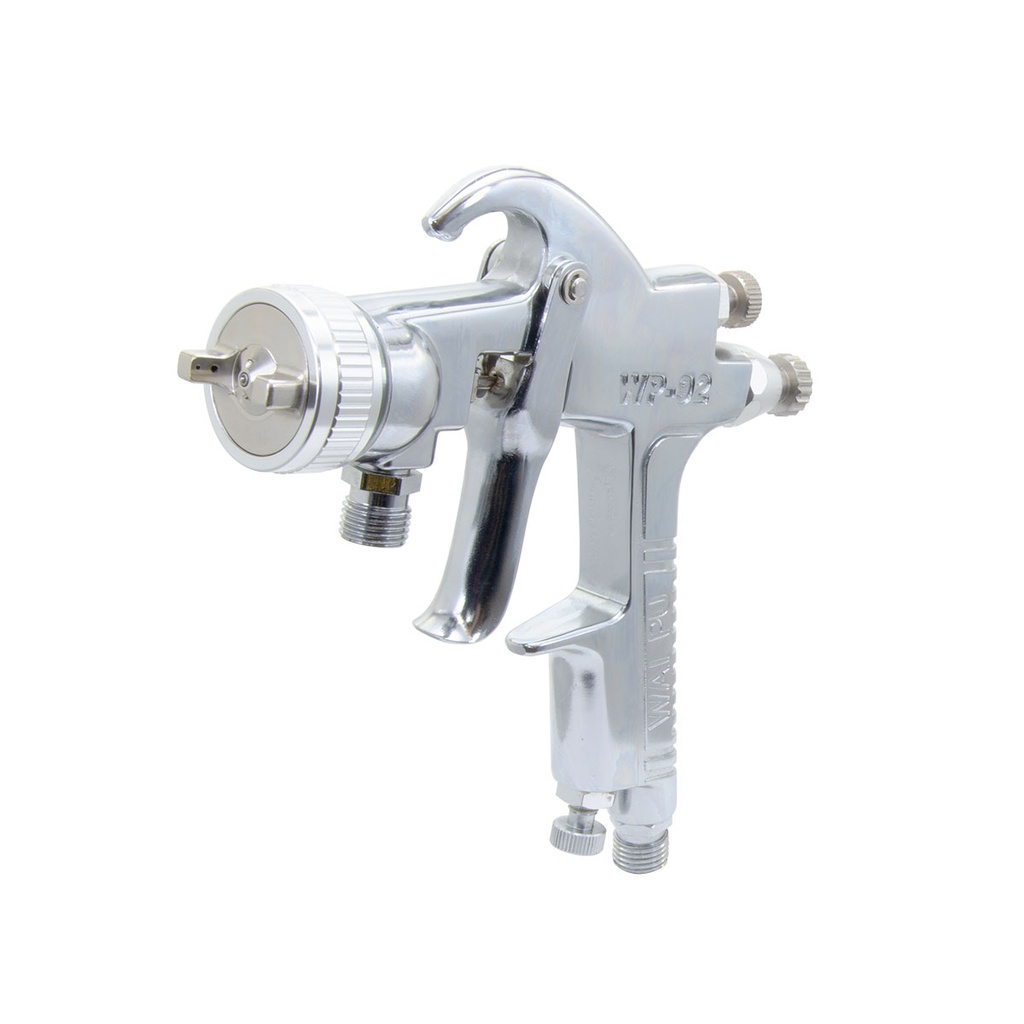

Portable Air Atomization Spray Gun

WP-92
https://www.waipu.com.tw/web/image/product.template/18/image_1920?unique=1f4f729
  • Ultra-lightweight design: Weighing only 355 g, allowing extended operation with reduced operator fatigue.
  • High-efficiency atomization: Provides uniform spraying performance and improves production efficiency.
  • LVMP (Low Volume Medium Pressure) Atomization Technology: Utilizing LVMP technology, it achieves stable and fine atomization with low air consumption, effectively improving paint transfer efficiency and reducing overspray while balancing coating quality with production efficiency.

    This combination does not exist.

    Applications/UsesSpecificationsAccessories-Air Cap

    Applications/Uses

    • Suitable for liquid coating applications on wood, metal, plastic, leather, and other materials, including the spraying of colored coatings, primers, and topcoats.

    Specifications

      Model   WP-92

      Fluid Supply Type
    		   G = Gravity
      P = Press
      S = Suction
      Bore of Nozzle
    		  0.5 / 0.8 / 1.1 / 1.4 / 1.8  mm
      Paint Cup (Suction)
    		  1,000 cc / 600 cc
      Gravity
    		  150 cc / 250 cc / 400 cc
      Air Cap
    		  E、M、N type
      Air Inlet Size
    		  1/4"PS(M)
      Paint Inlet Size
    		  1/4"PS(M)
      Max. Paint Pressure
    		  4 bar
      Spray Flow
    		  1-450 ml/min
      Max. Air Pressure
    		  7 bar
      Adj. Width Breadth
    		  50-250 mm
      Atomizing Pressure
    		  2-4 bar
      Air Consumption
    		  80-280 L/min
      Material of Gun
    		  Aluminum Alloy / Copper
      Material of Nozzle & Tip
    		  Stainless Steel
      Size
    		  L156 × H170 mm
      Net Weight
    		  0.36 kg

    Accessories-Air Cap

    Name E-Type Air Cap
    		 M-Type Air Cap
    		N-Type Air Cap




    Features & Used
    		 Suitable for wide spray pattern applications.
    Compatible with paint cup or pump feeding.
    Provides relatively coarse atomization.
    Suitable for primer and sealer applications.
    		 Suitable for narrower spray pattern applications.
    Can be used with a paint cup or pump.
    Provides excellent atomization performance.
    		Only suitable for pressurized paint supply systems, such as pumps or paint tanks.
    Provides finer atomization than M-Type.。
