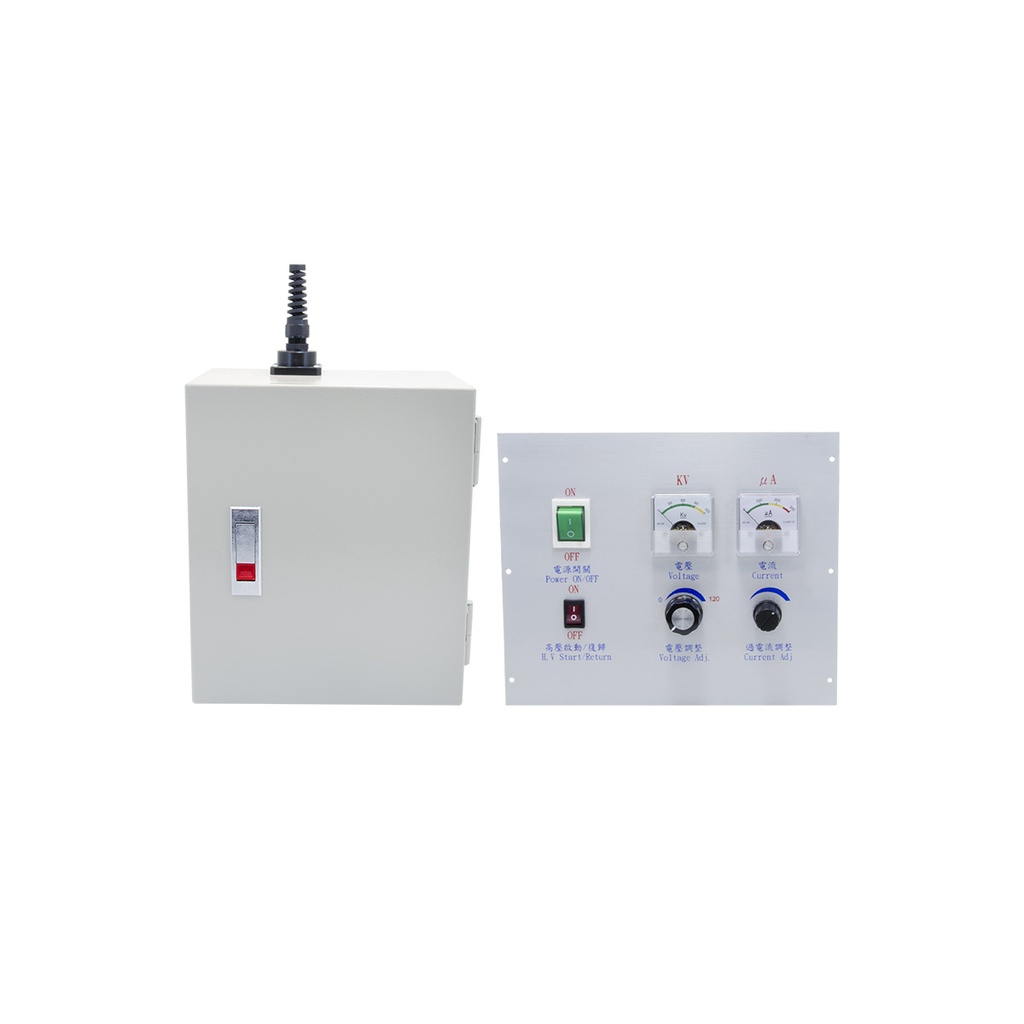

High-Voltage Electrostatic Generator

DC-600
https://www.waipu.com.tw/web/image/product.template/54/image_1920?unique=7c2d8de

    This combination does not exist.

    Applications/Uses

    • Improved Transfer Efficiency: Utilizes high-voltage electrostatic technology to enhance coating adhesion, transfer efficiency, and overall finishing quality.
    • Reduced Coating Waste: Minimizes overspray and paint dispersion, improving material utilization and reducing production costs.
    • Enhanced Coating Quality: Delivers fine atomization to achieve a uniform, consistent, and high-quality coating finish.
    • Improved Coverage on Complex Workpieces: Electrostatic attraction enhances coating coverage on edges, recesses, and complex-shaped workpieces.
    • Suitable for Automated Production: Compatible with automatic spray guns, robotic systems, and automatic color change systems to meet continuous production requirements.

    Specifications

    Model DC-600
    Voltage Used
    110V or 220V
    No-load Voltage
    DC-120 kV
    High Voltage Output Adjust
    DC 0-120 kV/150μA
    Way of Output
    Switch
    Overcurrent Trip Time
    1/100sec.;Discharge time ≤ 2sec.
    Power Consumption
    ≤ 400W
    Size
    Control panel: L240 × W198 × H110  mm
    High voltage electrostatic: L255 × W150 × H300 mm
    Net Weight
    Control panel: 3.8kg
    High voltage electrostatic: 6kg
    Applicable Coatings
    Suitable for water-based coatings
