Applications/Uses
- Improved Transfer Efficiency: Utilizes high-voltage electrostatic technology to enhance coating adhesion, transfer efficiency, and overall finishing quality.
- Reduced Coating Waste: Minimizes overspray and paint dispersion, improving material utilization and reducing production costs.
- Enhanced Coating Quality: Delivers fine atomization to achieve a uniform, consistent, and high-quality coating finish.
- Improved Coverage on Complex Workpieces: Electrostatic attraction enhances coating coverage on edges, recesses, and complex-shaped workpieces.
- Suitable for Automated Production: Compatible with automatic spray guns, robotic systems, and automatic color change systems to meet continuous production requirements.
Specifications

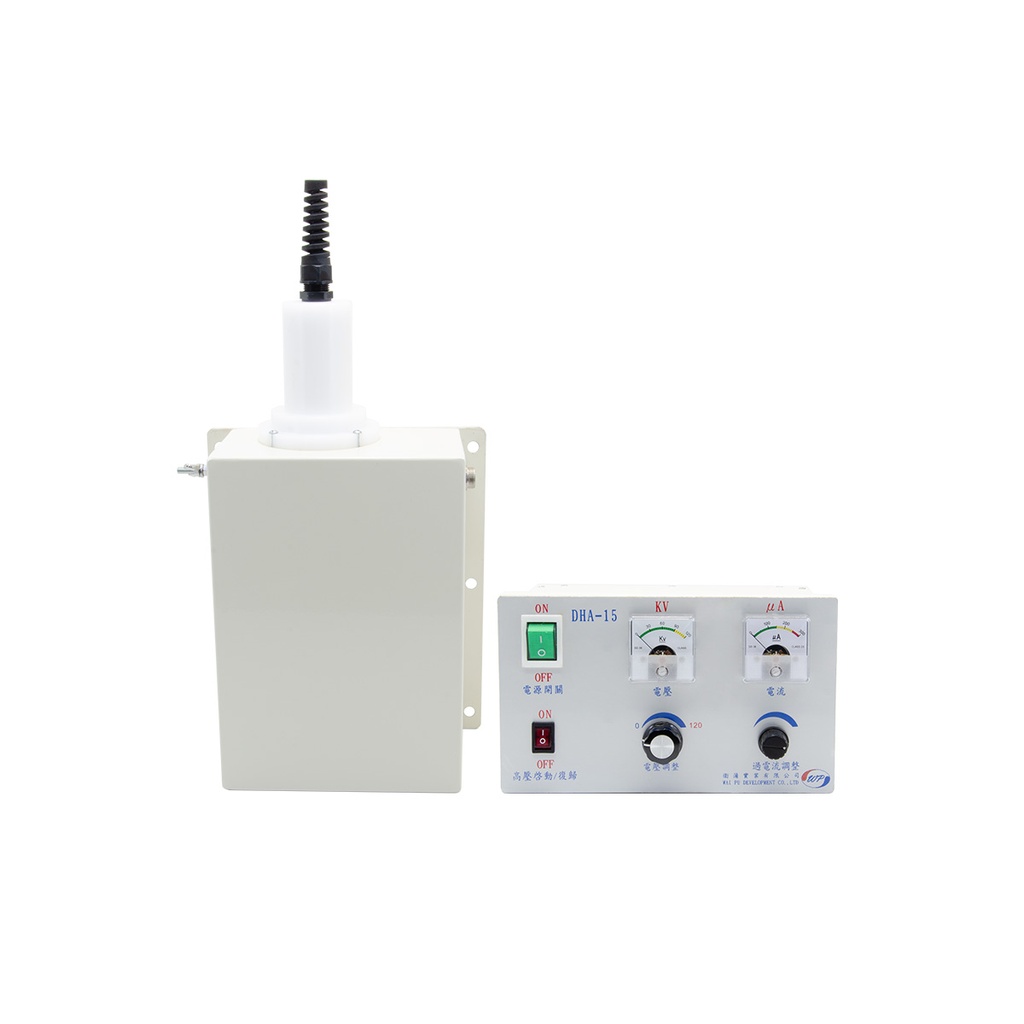

| Model | DHA-15 |
| Voltage Used |
110V or 230V |
| No-load Voltage | DC-100 kV |
| High Voltage Output Adjust | DC 0-120 kV/200μA |
| Way of Output | Switch |
| Overcurrent Trip Time | 1/100sec.；Discharge time ≤ 2sec. |
| Power Consumption | ≤ 400W |
| Size | Control panel: L225 × W135 × H148 mm High voltage electrostatic: L180 × W112 × H255 mm |
| Net Weight | Control panel: 3.5 kg High voltage electrostatic: 6 kg |
| Applicable Coatings | Suitable for water-based coatings |
