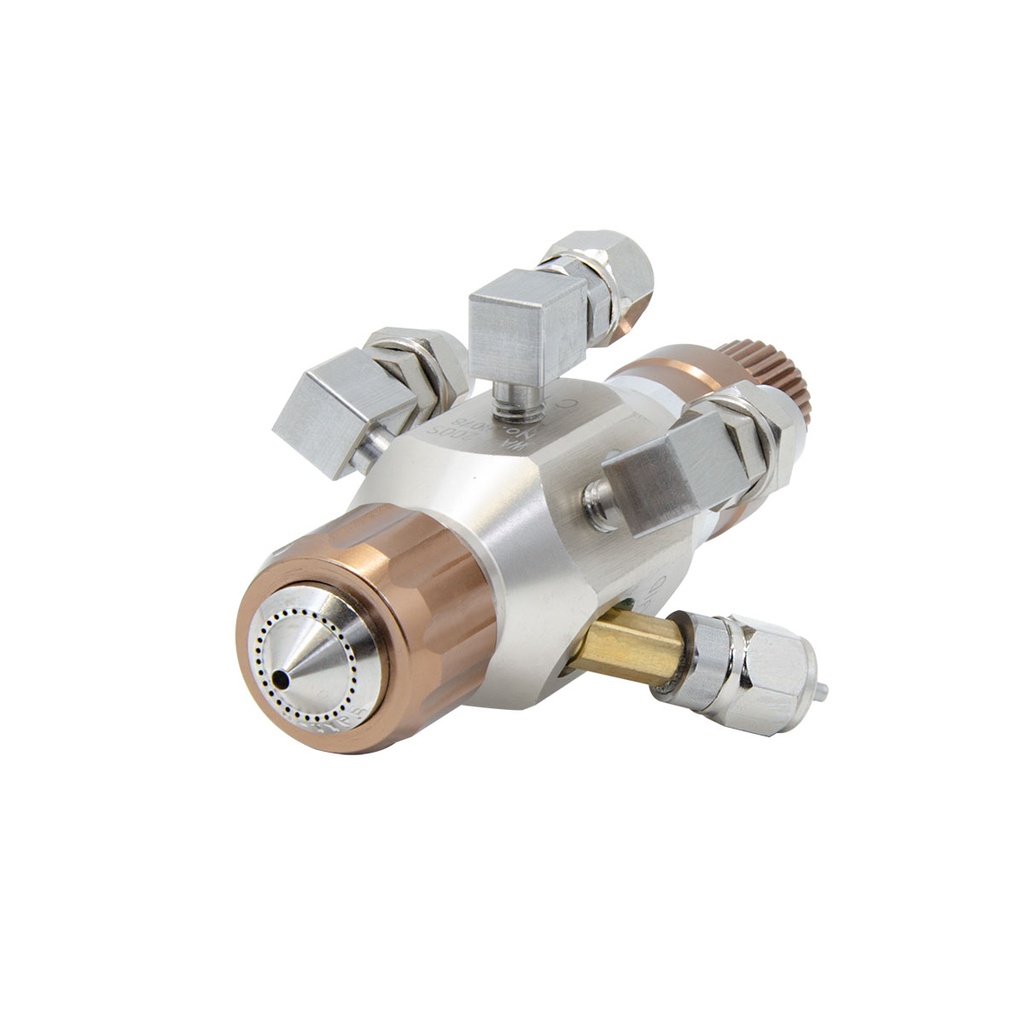

Mini Automatic Spray Gun

Fine atomization, paint-saving, and high transfer efficiency: excellent atomization performance with uniform coating, improving coating adhesion and reducing paint consumption.
Wear-resistant stainless steel structure: SUS stainless steel needle and nozzle are suitable for water-based coatings, with a specially treated surface for enhanced wear resistance.
Simple structure for easy cleaning and maintenance: Improves cleaning and maintenance efficiency.
External adjustment for atomization and spray pattern: easy operation without stopping production.
Dual paint passage design: separated supply and return flow for faster cleaning of the paint flow path.
LVMP (Low Volume Medium Pressure) Atomization Technology: Utilizing LVMP technology, it achieves stable and fine atomization with low air consumption, effectively improving paint transfer efficiency and reducing overspray while balancing coating quality with production efficiency.

Applications/Uses

Suitable for small workpiece coating applications, such as eyeglass frames and electronic components.

Model	WAG-200S
Fluid Supply Type	P = Pressure
Nozzle Type	Sector Nozzle / Round Nozzle
Paint Inlet Size	M5
Air Inlet Size	M5
Max. Air Pressure	8 bar
Max. Paint Pressure	6 bar
Bore of Nozzle	0.3、0.5、0.7 mm
Min. Control Air Pressure	4 bar
Wetted Parts	Stainless Steel / Teflon / Aluminum Alloy
Temperature Range	4.4-100°C
Size	L92 × W29 × H25 mm
Net Weight	0.14 kg
