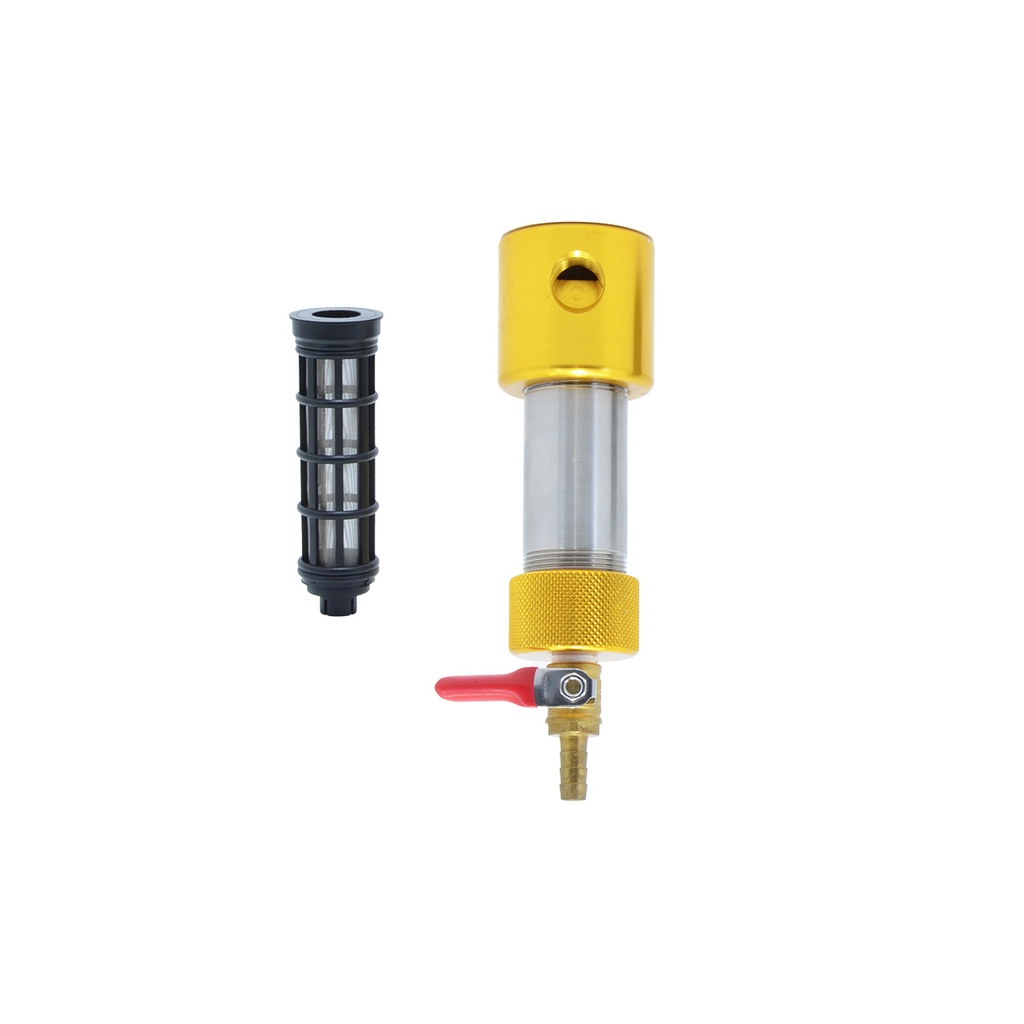

Paint Filter

https://www.waipu.com.tw/web/image/product.template/63/image_1920?unique=c339ec6
  • Specifically designed for low-pressure paint spray systems, providing reliable filtration for coating and painting applications.
  • Made with high-quality paint filter media to effectively remove impurities and particles from coatings, helping improve paint quality, consistency, and spray uniformity for a smoother and more stable coating process.

    This combination does not exist.

    Applications/Uses

    • Can be installed on a low-pressure air-operated double diaphragm pump to provide effective paint filtration, helping remove impurities and particles from coatings for a cleaner and more stable paint supply.

    Specifications

    Paint Inlet Size
    3/8"PT(F)
    Impurity Discharge Port Size
    1/4"PT(F)
    Paint Pressure
    20 bar
    Wetted Parts
    304sst / Aluminum Alloy / Teflon
    Size
    Ø 50 x L180mm
    Net Weight
    0.48kg
    Paint Outlet Size
    3/8"PT(F)
    Filtration Area
    45cm²
    Max. Flow Rate
    2 LPM
    Filter Screen
    60, 100, 200, 300, 400
    Temperature Range
    4.4 - 100°C
