Applications/Uses
Widely applicable to various metal workpieces, from precision components to large structural parts, enabling efficient coating.
- Metal parts and machining industry
- Automotive and transportation equipment
- Furniture and metal products
- Building materials and structural components
- Electronics and industrial equipment enclosures
Specifications

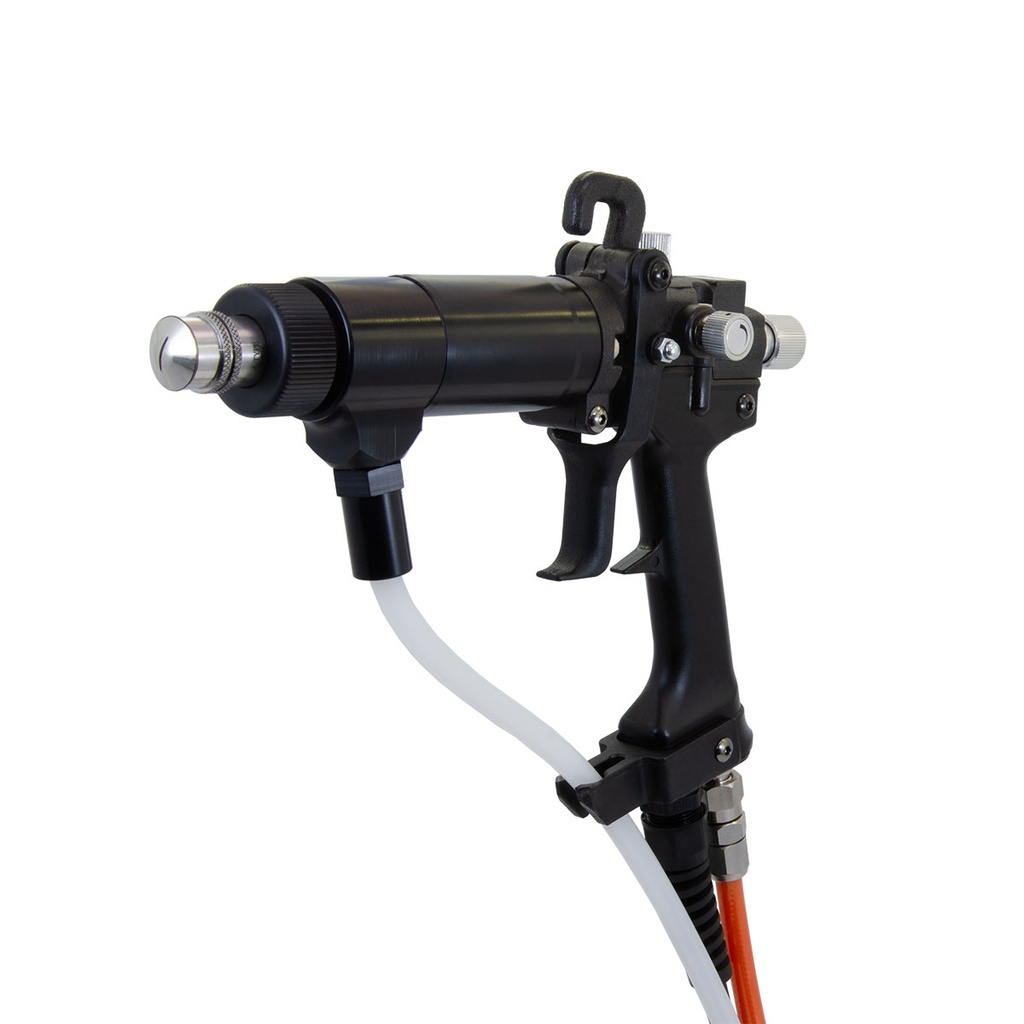

| Model | EG-206 |
| Air Inlet Size |
1/4"PS |
| High Voltage Output Adjust | 0-60 kV |
| Max. Spray Flow | 300 ml/min |
| Used Air Pressure | 2-5 bar |
| Size | L270 × H220 mm |
| Net Weight | 0.5 kg |
Accessories
| Name | Electrostatic Generator (HV) for EG-206 |
| Voltage Used | 110 VAC or 220 VAC- Ø2 Switch |
| No-load Voltage | DC-70 kV |
| Rated Output | DC-60 kV/ 50 µA |
| Output Adjustment | 0-60 kV Non-step adjustment |
| Way of Output | Air Pressure Control Switch |
| Overcurrent Trip Time | 1/100秒；Discharge tim ≤ 3秒 |
| Power Consumption | ≤ 250 W |
| Min. Stating Air Pressure | 2.5 bar |
| Size | L200 × W158 × H240 mm |
| Net Weight | 8.2 kg |
| Name | A-Type Round Nozzle |
M-Type Round Nozzle | S-Type Round Nozzle | SN-Type Sector Nozzle |
 |  |  |  | |
| Features & Used |
Used in clear paint with good atomizing result. |
Used in the powder, like the color powder or silver powder. | Used in small work- piece and clear paint. | Used in the big area spray, like the tabletop. |
| Air Consumption | 180 L/min | 180 L/min | 135 L/min | 350 L/min |
| Spray Flow | 20-300 ml/min | 20-300 ml/min | 15-225 ml/min | 50-300 ml/min |
| Atomizing Pressure | 1.5-3.2 bar | 1.5-3.2 bar | 1.5-3.2 bar | 2.5-4 bar |
| Spray Breadth | Ø80~Ø160 300 mm | Ø80~Ø160 300 mm | Ø50~Ø120 300 mm | 40-250 mm |
