Fluid Convey Gear Pump–Aluminum-Titanium

K-PUMP-T
https://www.waipu.com.tw/web/image/product.template/8/image_1920?unique=7a6422b

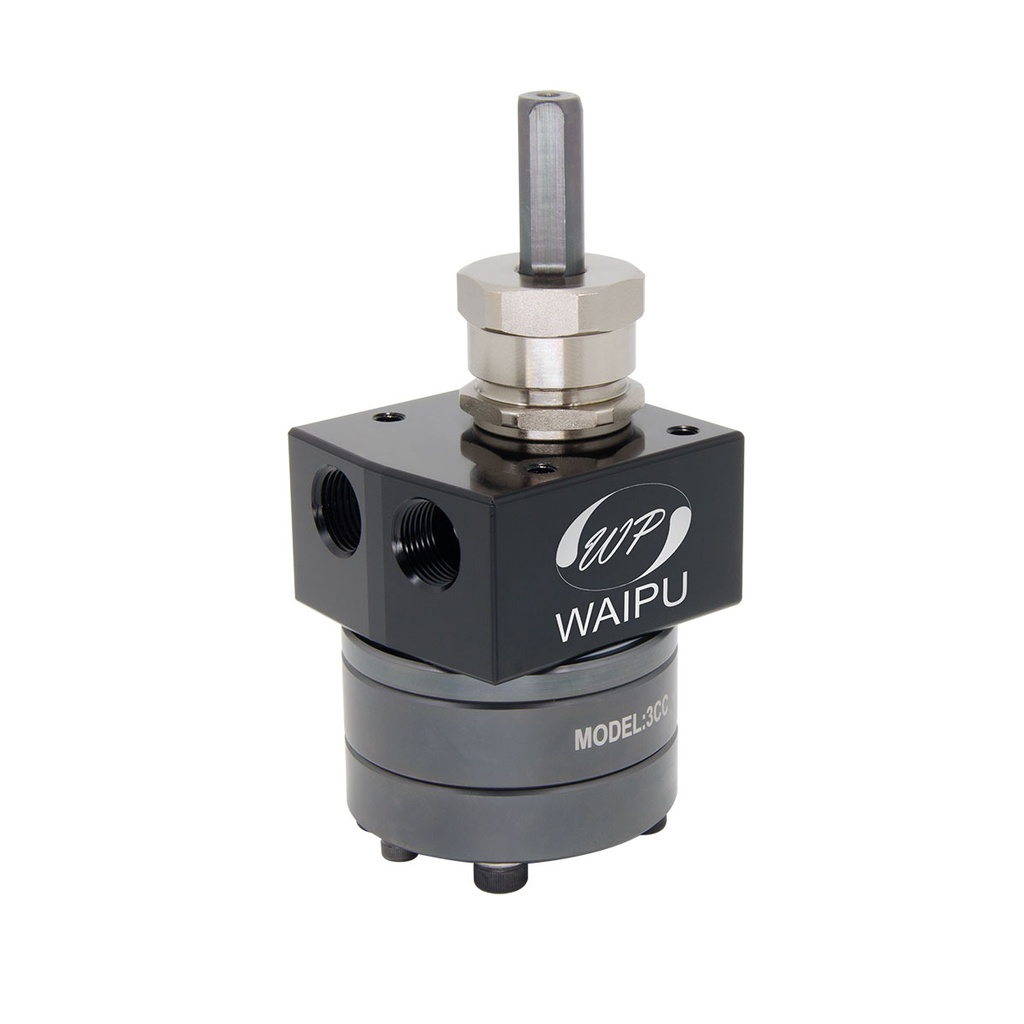

The TiAlN Coated Gear Pump features a specialized surface coating designed to enhance the surface hardness, wear resistance, and corrosion resistance of fluid-contact components. The coating also helps minimize paint adhesion and residue buildup, reducing cleaning and maintenance requirements.
Designed for industrial coating applications that demand enhanced wear resistance and stable fluid delivery, this gear pump provides a durable and reliable solution for precision fluid transfer. Its suitability can be evaluated based on specific coating properties and operating conditions, helping improve equipment durability and fluid transfer efficiency.

  • Specialized Surface Coating: Fluid-contact components feature a TiAlN surface coating that enhances surface hardness, improves wear resistance, and increases component durability.
  • Excellent Wear Resistance: Helps reduce friction-related wear on internal components during fluid transfer, supporting stable performance and reliable long-term operation.
  • Enhanced Corrosion Resistance: The specialized coating provides additional surface protection and improves the corrosion resistance of fluid-contact components, making it suitable for transferring compatible specialty coatings following proper material compatibility evaluation.
  • Reduced Paint Adhesion: Helps minimize paint adhesion and residue buildup on fluid-contact surfaces, reducing cleaning efforts and routine maintenance requirements.
  • Extended Component Service Life: Surface reinforcement helps minimize wear on critical components, contributing to improved durability and extended component service life.
  • Stable and Precise Fluid Delivery: Utilizes a positive displacement gear mechanism to provide consistent fluid transfer. It can be integrated with an appropriate drive control system to meet the requirements of precision paint metering and automated coating applications.

    This combination does not exist.

    Applications/Uses

    • Specialty Coating Transfer: Suitable for transferring specialty coatings following proper material compatibility evaluation, meeting the fluid supply requirements of various industrial coating processes.
    • Precision Paint Metering: Ideal for coating equipment requiring stable and controlled fluid delivery, ensuring consistent paint supply and improved process reliability.
    • Automated Spray Coating Systems: Can be integrated with automatic spray guns, robotic arms, and related control equipment for use in automated coating production lines.
    • High Wear-Resistance Applications: Suitable for industrial fluid transfer systems requiring enhanced wear resistance of fluid-contact components, supporting durability in demanding operating conditions.
    • Continuous Fluid Supply Systems: Designed for industrial processes requiring continuous and stable fluid delivery, helping improve equipment reliability and operational stability.

    Specifications

    Specifications / Model ​⁣​
    K-PUMP-T-0.4K-PUMP-T-0.5K-PUMP-T-1.5K-PUMP-T-3K-PUMP-T-5
    Displacement
    0.4 cc/rev
    0.5 cc/rev1.5 cc/rev3 cc/rev5 cc/rev

    Pressure
    Rated
    0.5 bar
    0.5 bar
    0.5 bar
    0.5 bar
    0.5 bar
    Max.
    4 bar
    4 bar
    4 bar
    4 bar
    4 bar

    Rotational Speed
    Paint Supply
    20-100 rpm
    20-100 rpm
    20-100 rpm
    20-100 rpm
    20-100 rpm
    Quick Cleaning
    150-200 rpm
    150-200 rpm
    150-200 rpm
    150-200 rpm
    150-200 rpm

    Size
    A2.3 mm
    2.85 mm
    8.5 mm
    17 mm
    28 mm
    L127 mm
    128 mm
    133.5 mm
    142 mm
    153 mm

     Paint Inlet/Outlet
    Inlet
    3/8"PT
    3/8"PT
    3/8"PT
    3/8"PT
    3/8"PT
    Outlet
    3/8"PT
    3/8"PT
    3/8"PT
    3/8"PT
    3/8"PT
    Net Weight
    1 kg
    1 kg
    1.2 kg
    1.4 kg
    1.65 kg

    Accessories

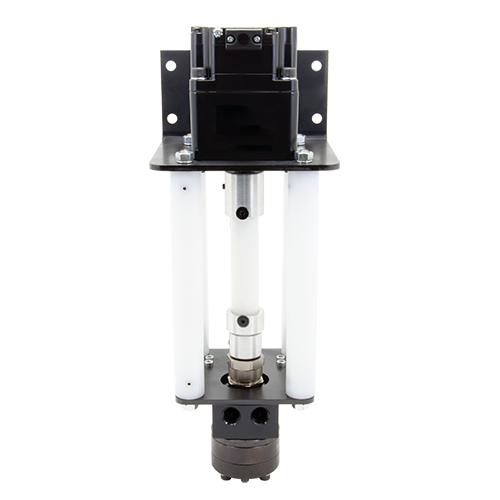

    Name Brushless Motor - Standard Type

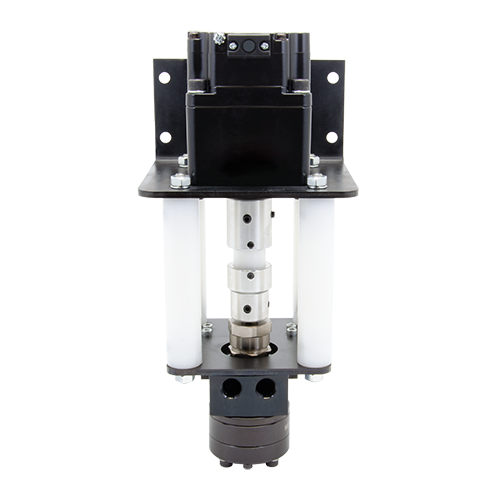

    Brushless Motor - Electrostatic Type

    Model BMPF-S: For Ø6 mm gear pump shaft
    BMPF-L: For Ø12.7 mm gear pump shaft
    BMPF-S-HV: For Ø6 mm gear pump shaft
    BMPF-L-HV: For Ø12.7 mm gear pump shaft
    Size
    BMPF-S: L160 × W150 × H254 mm
    BMPF-L: L160 × W150 × H279 mm
    BMPF-S-HV: L160 × W150 × H331 mm
    BMPF-L-HV: L160 × W150 × H354 mm
