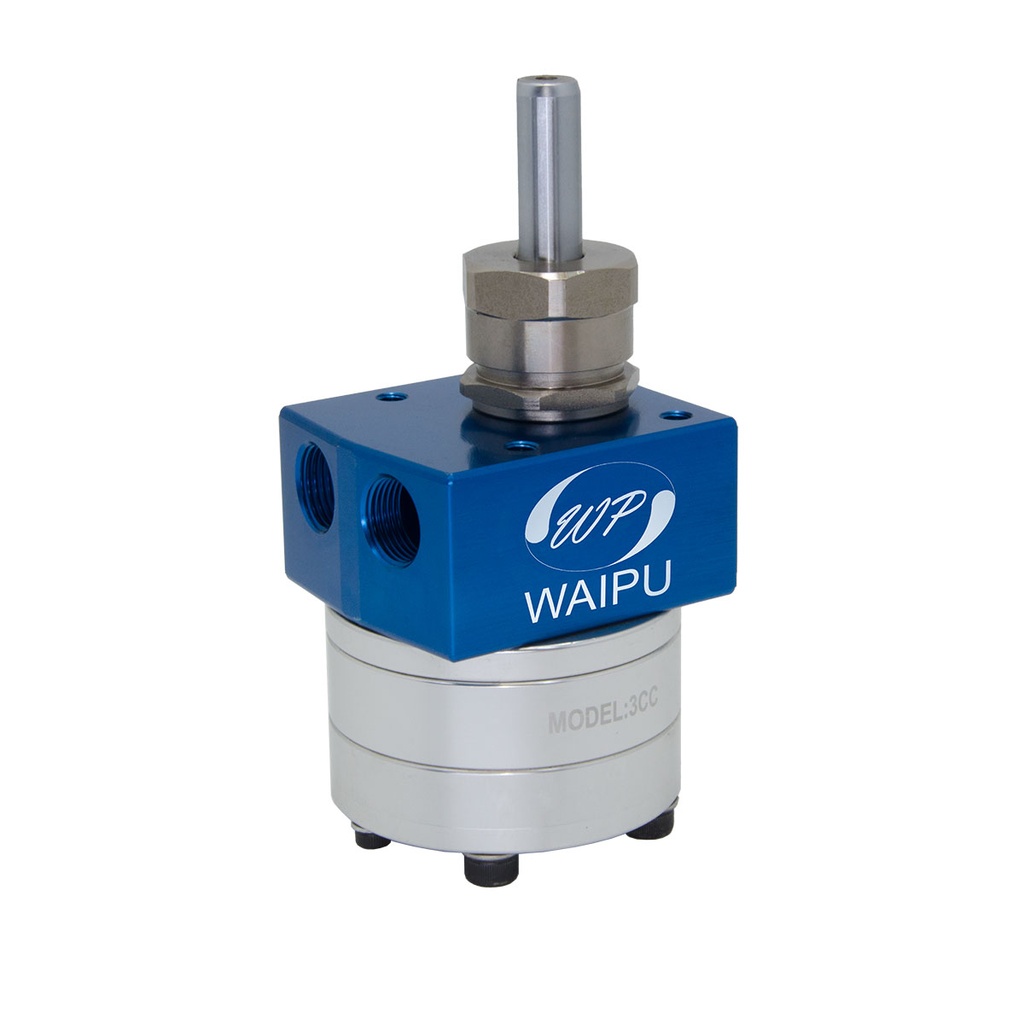

Fluid Convey Gear Pump–Tungsten Carbide

K-PUMP-C
https://www.waipu.com.tw/web/image/product.template/10/image_1920?unique=f75e8ec

The Tungsten Carbide Gear Pump features high-hardness tungsten carbide wear-resistant components, providing excellent wear resistance and enhanced durability. It is designed for industrial fluid transfer applications that demand long-lasting component performance and stable fluid delivery.
Depending on fluid properties and wetted material compatibility, the pump can be used for transferring water-based paints, specialty coatings, and acidic or alkaline liquids. It can be integrated with geared motors, brushless motors, or servo motors to meet various precision fluid metering requirements across different industrial processes.
With its highly wear-resistant gear structure and stable fluid transfer performance, the pump helps minimize component wear, extend equipment service life, and improve fluid supply consistency in automated coating systems.

  • High-Hardness Tungsten Carbide Gears: Incorporates tungsten carbide wear-resistant components with exceptional hardness and excellent wear resistance, enhancing gear durability and long-term performance.
  • Excellent Wear Resistance: Helps minimize friction-related gear wear during fluid transfer, contributing to extended component service life and reliable operation.
  • Acid, Alkali, and Corrosion Resistance: Suitable for transferring acidic and alkaline liquids following proper material compatibility verification. Applications involving liquids within a pH range of 3–12 can be evaluated based on specific fluid properties and operating conditions.
  • Specialty Coating Compatibility: Suitable for transferring water-based paints and other specialty fluids, depending on coating properties and material compatibility, meeting diverse industrial fluid supply requirements.
  • Precision Fluid Metering: Utilizes a positive displacement gear mechanism to provide controlled fluid delivery. Compatible with various drive motors to adjust fluid flow rates according to specific process requirements.
  • Versatile Motor Integration: Can be integrated with geared motors, brushless motors, or servo motors to accommodate different flow control requirements and automated equipment configurations.

    This combination does not exist.

    Applications/Uses

    • Acidic and Alkaline Liquid Transfer: Suitable for transferring acidic and alkaline liquids following proper wetted material compatibility verification. Fluid transfer requirements can be evaluated based on specific chemical compositions and operating conditions.
    • Particle-Containing Fluids and Specialty Coating Transfer: Suitable for fluid supply processes involving powder-containing liquids, water-based paints, and other specialty coatings. The highly wear-resistant gear structure helps minimize component wear during fluid transfer.
    • Precision Paint Metering: Can be integrated with geared motors, brushless motors, or servo motors to adjust fluid flow rates according to specific process requirements, meeting high-precision fluid metering and dosing needs.
    • Automated Coating Systems: Can be integrated with automatic spray guns, robotic arms, and related control equipment to provide stable and continuous paint delivery, improving consistency throughout automated coating processes.
    • High Wear-Resistance Applications: Ideal for industrial fluid transfer systems requiring enhanced gear wear resistance and equipment durability, helping reduce component wear and maintenance requirements.

    Specifications

    Specifications / Model ​⁣​
    K-PUMP-C-3K-PUMP-C-5
    Displacement
    3 cc/rev
    5 cc/rev

    Pressure
    Rated
    0.5 bar
    0.5 bar
    Max.
    4 bar
    4 bar

    Rotational Speed
    Paint Supply
    20-100 rpm
    20-100 rpm
    Quick Cleaning
    150-200 rpm
    150-200 rpm

    Size
    A17 mm
    25 mm
    L144 mm
    152 mm

    Paint Inlet/Outlet
    Inlet
    3/8"PT
    3/8"PT
    Outlet
    3/8"PT
    3/8"PT
    Net Weight
    1.25 kg
    1.45 kg

    Accessories

    Name Brushless Motor - Standard Type
    Brushless Motor - Electrostatic Type

    Model BMPF-S:  For Ø6 mm gear pump shaft
    BMPF-L: For Ø12.7 mm gear pump shaft
    BMPF-S-HV:  For Ø6 mm gear pump shaft
    BMPF-L-HV:  For Ø12.7 mm gear pump shaft
    Size
    BMPF-S: L160 × W150 × H254 mm
    BMPF-L: L160 × W150 × H279 mm
    BMPF-S-HV: L160 × W150 × H331 mm
    BMPF-L-HV: L160 × W150 × H354 mm
