Applications/Uses
- Precision fluid metering valve applications
- Industrial coating and painting process control
- Automatic paint color change systems
- Automatic flushing and cleaning systems
- Two-component paint mixing systems
Specifications

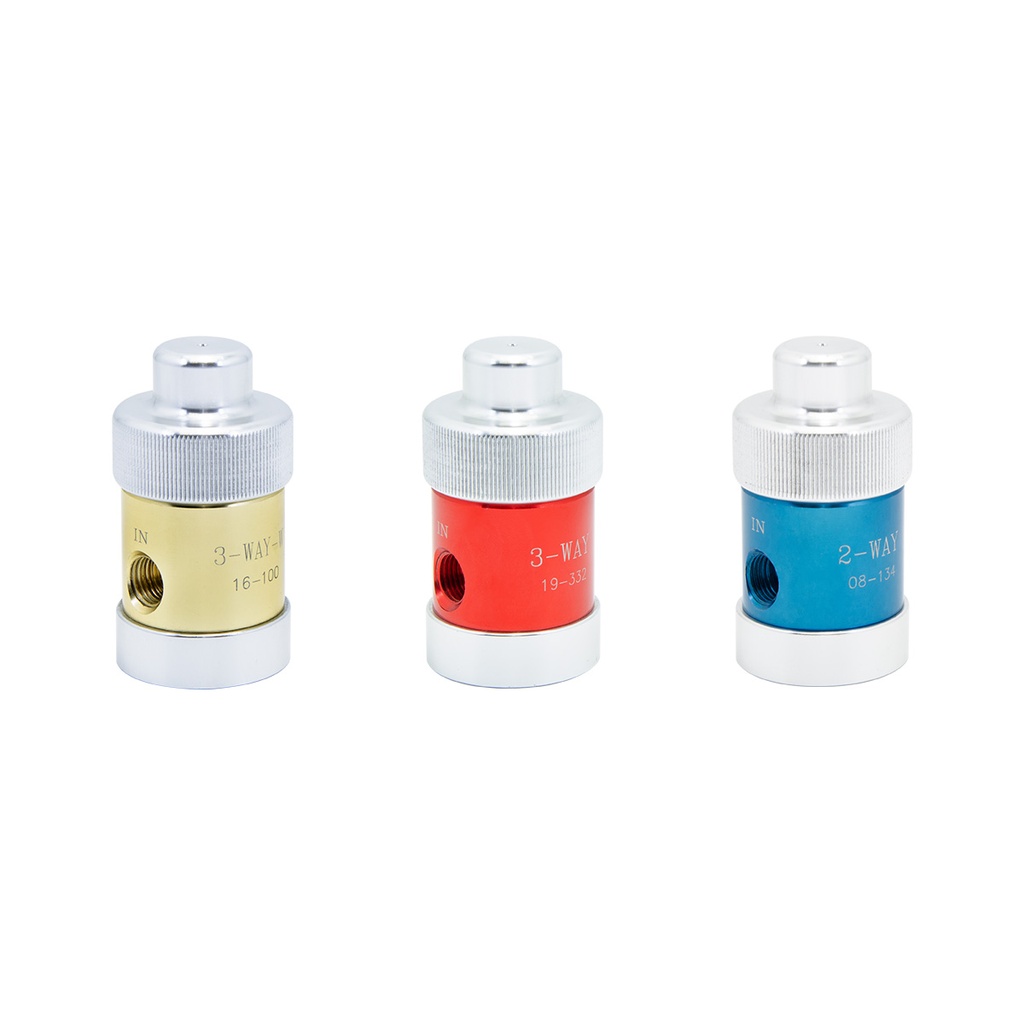

| Model |
2-WAY |
3-WAY | 3-WAY-W |
| Function Categories |
Suitable for Water and Oil | Suitable for Water and Oil | Wear-Resistant Type |
| Main Features | Versatile Design with Excellent Durability | Versatile Design with Excellent Durability | Designed for Highly Abrasive Fluids |
| Product Finish Color | 藍 | 紅 | 金 |
| Paint Inlet Size | 1/4"PT | 1/4"PT | 1/4"PT |
| Paint Outlet Size | 1/4"PT | 1/4"PT | 1/4"PT |
| Paint Return Size | - | 1/4"PT | 1/4"PT |
| Air Inlet Size | 1/8"PT | 1/8"PT | 1/8"PT |
| Max. Paint Pressure | 6 bar | 6 bar | 6 bar |
| Min. Control Air Pressure | 2.5 bar | 2.5 bar | 2.5 bar |
| Max. Spray Flow | 0 - 4 L/min | 0 - 4 L/min | 0 - 4 L/min |
| Wetted Parts | Stainless Steel / Aluminum Alloy / Teflon | Stainless Steel / Aluminum Alloy / Teflon | Stainless Steel / Aluminum Alloy / Teflon |
| Temperature Range | 5 - 80°C | 5 - 80°C | 5 - 80°C |
| Size | W44 × L80 mm | W44 × L80 mm | W44 × L80 mm |
| Net Weight | 0.23 kg | 0.23 kg | 0.23 kg |
Remark:
- 2The 2-W series does not support paint recirculation.
