Fluid Convey Gear Pump–Downdraft Type

SS-SP
https://www.waipu.com.tw/web/image/product.template/12/image_1920?unique=7ad5b32

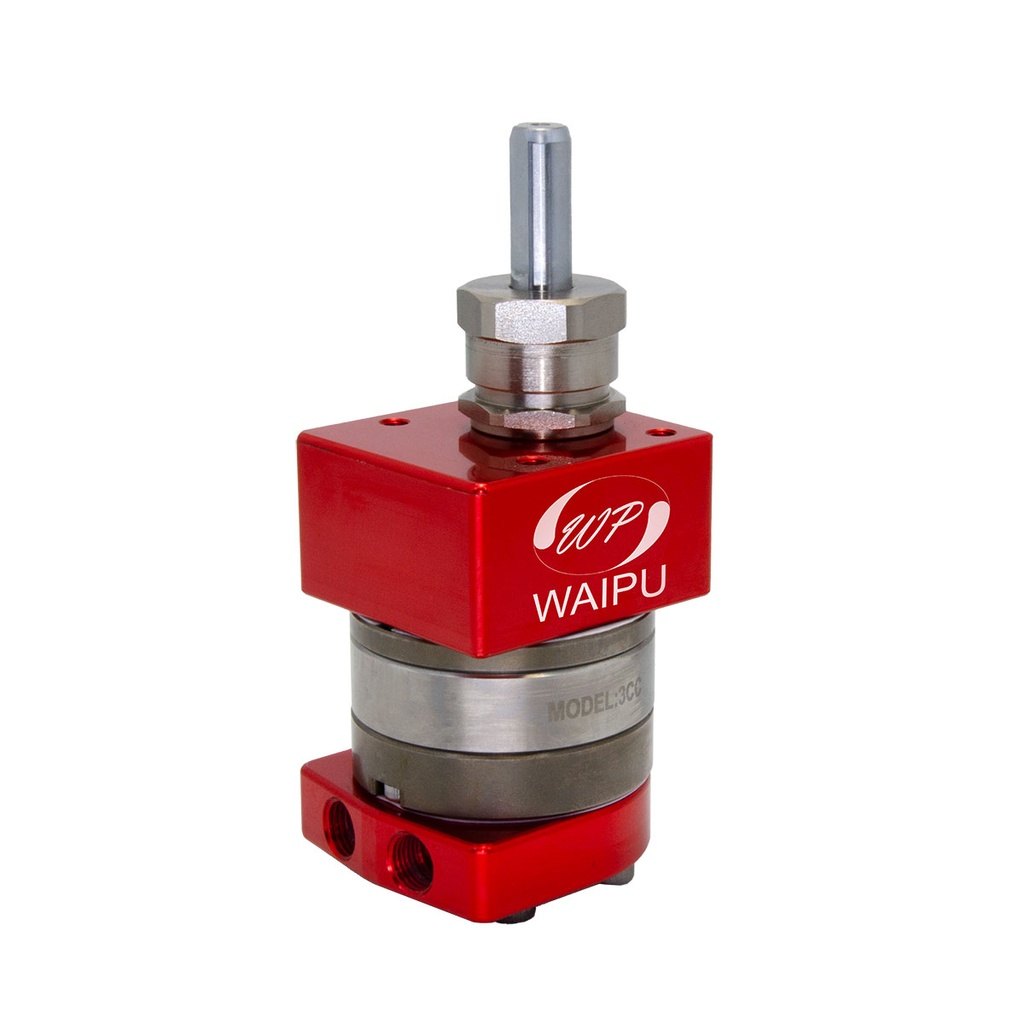

The Downdraft Type Gear Pump features a gravity-assisted flow design that utilizes natural gravity to facilitate the smooth discharge of fluids and particle-containing coatings. This design helps minimize paint residue and sediment buildup, supporting stable and reliable gear pump operation.
The pump incorporates highly wear-resistant synthetic engineering plastic gears and a specially heat-treated stainless steel pump body, providing excellent wear resistance, corrosion resistance, and resistance to acidic and alkaline liquids. Subject to proper material compatibility verification, it is suitable for transferring water-based paints, solvent-based paints, high-sedimentation coatings, and particle-containing coatings.
An optional bypass valve can be installed at the bottom of the pump and configured on either the inlet or outlet side according to cleaning requirements. This arrangement facilitates pump and spray gun cleaning, making the pump suitable for automated coating systems requiring stable paint delivery and periodic maintenance.

  • Gravity-Assisted Flow Design: Utilizes natural gravity to facilitate the discharge of sediment and particle-containing coatings, helping minimize paint residue and buildup while maintaining smooth gear pump operation.
  • Reduced Risk of Sediment Buildup and Blockage: The bottom suction configuration improves discharge conditions for sediment-prone coatings, reducing the impact of coating deposits on fluid transfer and equipment operation.
  • Highly Wear-Resistant Gear Structure: Features gears made from highly wear-resistant synthetic engineering plastic, enhancing component durability and helping extend gear service life.
  • Corrosion-Resistant Pump Body: Constructed from specially heat-treated stainless steel, providing wear resistance, corrosion resistance, and resistance to acidic and alkaline liquids to accommodate various coating transfer requirements.
  • Versatile Coating Compatibility: Suitable for transferring water-based paints, solvent-based paints, high-sedimentation coatings, and particle-containing coatings, depending on specific fluid properties and material compatibility.
  • Flexible Bypass Valve Configuration: An optional bottom-mounted bypass valve can be configured on either the inlet or outlet side according to cleaning requirements, allowing flexible integration into different paint supply and cleaning pipelines.
  • Easy Cleaning and Maintenance: The bypass valve configuration facilitates pump and spray gun cleaning, helping reduce maintenance requirements associated with paint residue and sediment buildup.

    This combination does not exist.

    Applications/Uses

    • Sediment-Prone Coating Transfer: Suitable for paint supply processes involving coatings prone to sedimentation or buildup. The gravity-assisted flow design facilitates the smooth discharge of sediment and coating materials, helping minimize residue accumulation and reduce the risk of blockage.
    • Particle-Containing and Specialty Coating Transfer: Suitable for transferring particle-containing coatings, water-based paints, solvent-based paints, and other specialty fluids, subject to proper material compatibility and particle characteristic evaluation, meeting various industrial coating process requirements.
    • Automated Paint Supply Systems: Can be integrated with automatic spray guns and related control systems according to specific equipment configurations, providing stable paint delivery and improving material supply consistency throughout automated coating processes.
    • Pump and Spray Gun Cleaning: The bottom-mounted bypass valve can be configured on either the inlet or outlet side according to cleaning requirements, facilitating pump and spray gun cleaning while reducing paint residue buildup and maintenance efforts.
    • Wear-Resistant and Corrosion-Resistant Fluid Transfer: Suitable for industrial paint transfer systems requiring enhanced gear wear resistance and pump body corrosion resistance, helping improve equipment durability and long-term operational reliability.

    Specifications

    Specifications / Model
    SS-SP-0.4SS-SP-0.5SS-SP-1SS-SP-1.5SS-SP-3SS-SP-5
    Pressure
    0.4 cc/rev
    0.5 cc/rev1 cc/rev1.5 cc/rev3 cc/rev5 cc/rev

    Pressure
    Rated
    0.5 bar
    0.5 bar0.5 bar
    0.5 bar
    0.5 bar
    0.5 bar
    Max.
    4 bar
    4 bar
    4 bar4 bar
    4 bar
    4 bar

    Rotational Speed
    Paint Supply
    20-100 rpm
    20-100rpm20-100 rpm
    20-100 rpm
    20-100 rpm
    20-100 rpm
    Quick Cleaning
    150-200 rpm
    150-200 rpm
    150-200rpm150-200 rpm
    150-200 rpm
    150-200 rpm

    Size
    A2.3 mm
    2.85 mm5.7 mm
    8.5 mm
    17 mm
    28 mm
    L150 mm
    150 mm
    150 mm150 mm
    158 mm
    169 mm

    Paint Inlet/Outlet
    Inlet
    1/4"PS
    1/4"PS1/4"PS
    1/4"PS
    1/4"PS
    1/4"PS
    Outlet
    1/4"PS
    1/4"PS
    1/4"PS1/4"PS
    1/4"PS
    1/4"PS
    Net Weight
    1.45 kg
    1.45 kg
    1.45 kg1.45 kg
    1.6 kg
    1.8 kg
    SpacerVVV---

    Pumps-Downdraft Type with Bypass Valve

    Downdraft Type with Bypass Valve
    Paint Inlet/Outlet Size
    1/8”PT
    Air Inlet Size
    1/8”PT
    Max. Paint Pressure
    6 bar
    Min. Control Air Pressure
    4 bar
    Max. Spray Flow
    2.2 L/min
    Temperature Range
    5-80°C

    Material ​⁣​
    Stainless Steel / Aluminum Alloy / Teflon
    Wear-resistant type: The needle and connect are SLD (heat treatment).
     ​⁣​
    ​⁣​
    ​⁣​
    Installation Location
    QWG-2W-1-W/S:Quick cleaning spray guns
    QWPG-2W-1-W/S:Quick cleaning of gear pumps and spray guns
    QWP-2W-2-W/S:Quick cleaning of gear pumps
    SV-25:Prevent the internal pressure of the gear pump from being too high, causing a pipe burst or damage to the gear pump itself.
    RemarkW is water-based paint, S is oil-based paint.


    Accessories

    Name Brushless Motor - Standard Type
    Brushless Motor - Electrostatic Type

    Model BMPF-S:    For Ø6 mm gear pump shaft
    BMPF-L: For Ø12.7 mm gear pump shaft
    BMPF-S-HV: For Ø6 mm gear pump shaft
    BMPF-L-HV: For Ø12.7 mm gear pump shaft
    Size
    BMPF-S: L160 × W150 × H254 mm
    BMPF-L: L160 × W150 × H279 mm
    BMPF-S-HV: L160 × W150 × H331 mm
    BMPF-L-HV: L160 × W150 × H354 mm
