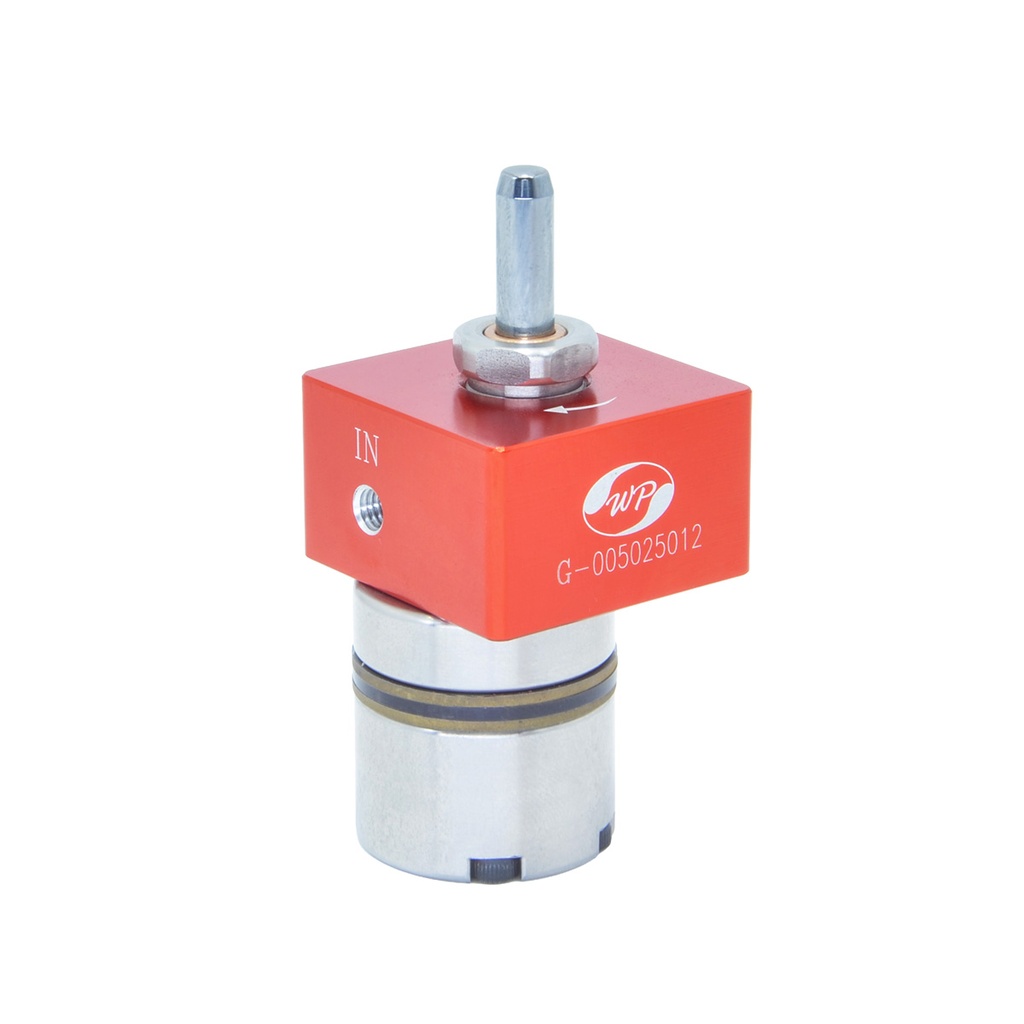

Fluid Convey Gear Pump–Microscale Type

K-PUMP-CM
https://www.waipu.com.tw/web/image/product.template/11/image_1920?unique=cd07ad8

The Micro Flow Gear Pump is specifically designed for low-flow fluid transfer and precision metering applications. Utilizing a positive displacement gear mechanism, it delivers stable and controllable fluid flow, making it ideal for industrial processes requiring micro-volume paint supply and precise flow control.
The pump can be integrated with geared motors, brushless motors, or servo motors to adjust fluid delivery rates according to specific process requirements. It is suitable for precision spray coating, automated fluid supply systems, and various low-flow fluid transfer applications.
Special materials and specifications can be customized to meet specific application requirements, providing flexible and reliable precision fluid delivery solutions.

  • Precision Micro-Volume Delivery: Specifically designed for low-flow fluid supply applications, providing stable and controllable fluid transfer for precision paint metering and micro-volume dosing processes.
  • Precision Flow Control: Compatible with various drive motors to adjust operating speed and regulate fluid flow rates according to specific process requirements.
  • Stable and Consistent Fluid Metering: Utilizes a positive displacement gear mechanism to provide continuous and stable fluid delivery, ensuring consistent material supply throughout the production process.
  • Reduced Material Waste: Proper micro-volume fluid control helps minimize excessive fluid delivery and paint waste, improving material utilization efficiency.
  • Automated System Integration: Can be integrated with automatic spray guns, robotic arms, and related control equipment to meet the requirements of precision coating and automated fluid supply systems.
  • Customizable Materials and Specifications: Special materials and configurations can be customized based on fluid properties, flow rate requirements, and operating conditions, providing flexible fluid transfer solutions.

    This combination does not exist.

    Applications/Uses

    • Micro-Volume Fluid Delivery: Suitable for industrial processes requiring small-volume and stable fluid supply, providing controllable fluid transfer to meet low-flow and micro-volume dosing requirements.
    • Precision Paint Metering: Ideal for precision spray coating processes requiring accurate control of paint delivery rates, helping improve material supply consistency and overall coating quality.
    • Automated Coating Systems: Can be integrated with automatic spray guns, robotic arms, and related control equipment to provide stable micro-volume paint delivery, meeting the requirements of automated precision coating applications.
    • High-Precision Fluid Metering: Compatible with geared motors, brushless motors, or servo motors to adjust operating speed according to specific process requirements, enabling precise control of fluid delivery.
    • Customized Micro-Volume Fluid Supply Systems: Can be integrated into various industrial micro-volume fluid supply systems based on fluid properties, flow rate requirements, and equipment integration conditions.

    Specifications

    Specifications / Model
    K-PUMP-CM-0.05K-PUMP-CM-0.1K-PUMP-CM-0.2K-PUMP-CM-0.5
    Displacement
    0.05 cc/rev
    0.1 cc/rev0.2 cc/rev0.5 cc/rev

    Pressure
    Rated
    0.5 bar
    0.5 bar
    0.5 bar
    0.5 bar
    Max.
    4 bar
    4 bar
    4 bar
    4 bar

    Rotational Speed
    Paint Supply
    20-100 rpm
    20-100 rpm
    20-100 rpm
    20-100 rpm
    Quick Cleaning
    150-200 rpm
    150-200 rpm
    150-200 rpm
    150-200 rpm

    Size
    A1.5 mm
    3 mm
    6 mm
    15 mm
    L70.5 mm
    72 mm
    75 mm
    84 mm

    Paint Inlet/Outlet
    Inlet
    M5M5M5M5
    Outlet
    M5M5M5M5
    Net Weight
    0.23 kg
    0.24 kg
    0.25 kg
    0.29 kg

    Accessories

    Name Brushless Motor - Standard Type
    Brushless Motor - Electrostatic Type

    Model BMPF-S: For Ø6 mm gear pump shaft
    BMPF-L: For Ø12.7 mm gear pump shaft
    BMPF-S-HV:  For Ø6 mm gear pump shaft
    BMPF-L-HV:  For Ø12.7 mm gear pump shaft
    Size
    BMPF-S: L160 × W150 × H254 mm
    BMPF-L: L160 × W150 × H279 mm
    BMPF-S-HV: L160 × W150 × H331 mm
    BMPF-L-HV: L160 × W150 × H354 mm
